Cadence

Cadence leads electronic systems design with over 30 years of computational software expertise. The Intelligent System Design strategy delivers software, hardware, and IP solutions that transform design ideas into reality across diverse industries such as hyperscale computing, 5G, automotive, aerospace, and more. Cadence fosters an innovative culture that promotes business success, consistently recognized as a top workplace globally, including on Fortune’s “100 Best Companies to Work For” list for nine consecutive years.

Cadence System Design and Analysis Platforms: Empower Your High-Performance Product Design

The Cadence System Design and Analysis Platforms empower high-performance product development through a comprehensive, user-friendly system design and analysis solution. With this platform, you can ensure your products achieve peak performance, security, and a seamless design process from chip to package to board to enclosure. Featuring integrated multiphysics analysis tools, the platform enables effortless tackling of complex EMI/EMC, power, signal, and thermal integrity challenges, ensuring your product is flawless on the first attempt.

This platform enhances product quality, reduces rework costs, and exceeds customer expectations, providing a truly advanced electronics design experience. Services include the Celsius EC Solver, Computational Fluid Dynamics (CFD) for airflow and thermal analysis, and Cadence Reality Data Center Solutions for optimized design and operational efficiency.

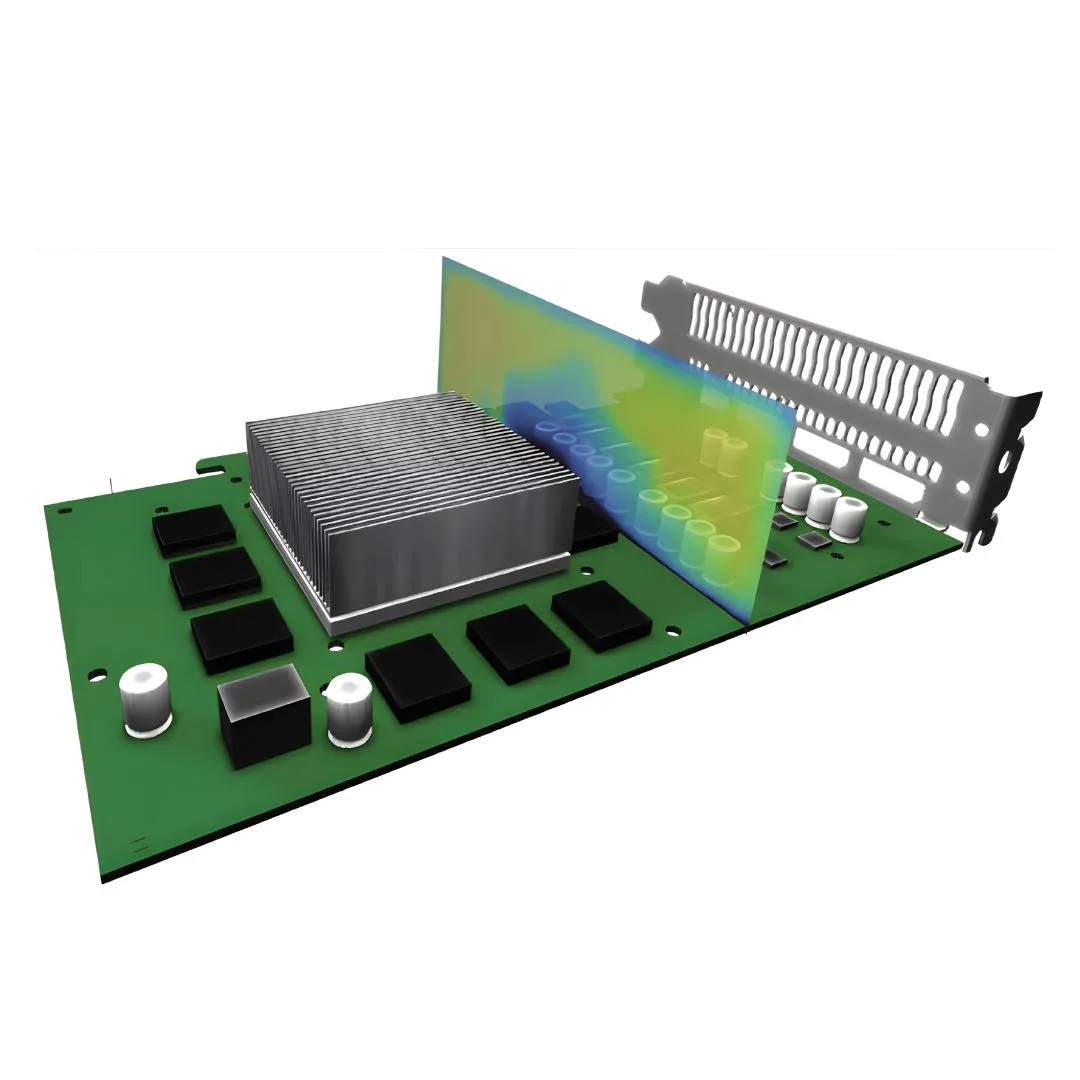

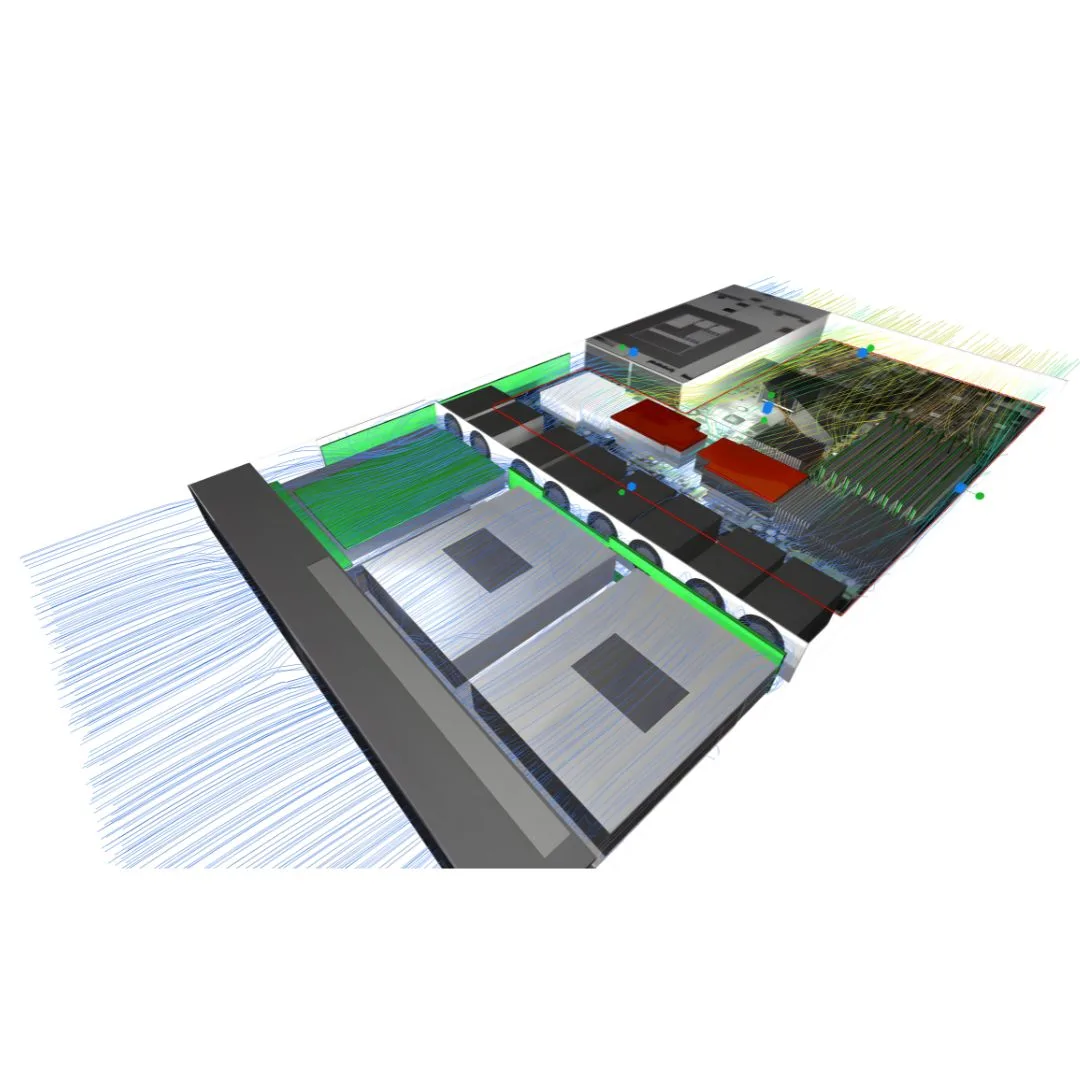

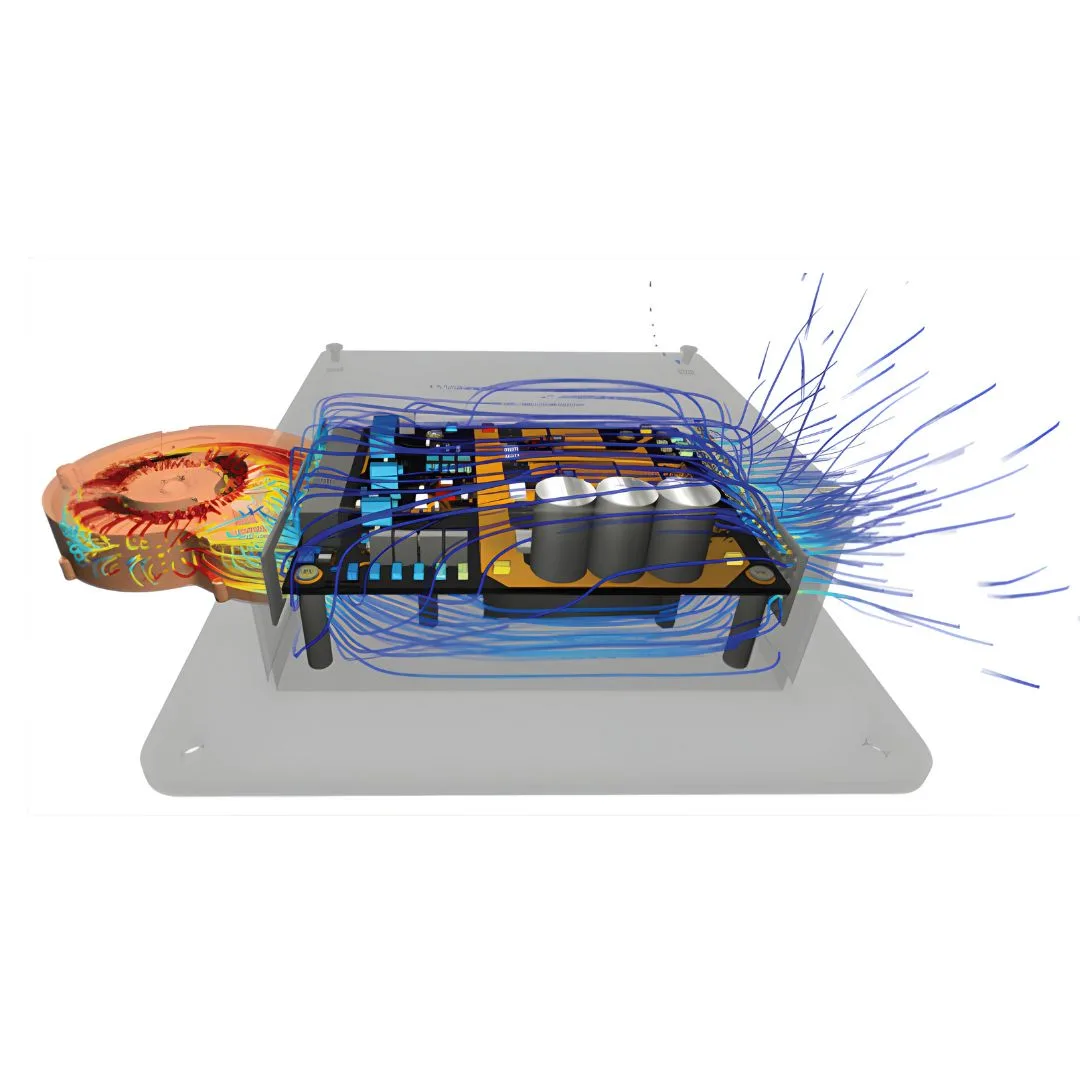

Electronics cooling simulation software enables precise and rapid evaluation of the thermal performance of electronic systems.

The Celsius EC Solver emerges as a robust solution for engineers and designers seeking to enhance electronic cooling through advanced simulation capabilities. By utilizing this tool, professionals can optimize thermal management strategies, thereby addressing critical thermal challenges and improving overall system performance.

FEATURES:

Early-stage thermal/electronics cooling solutions.

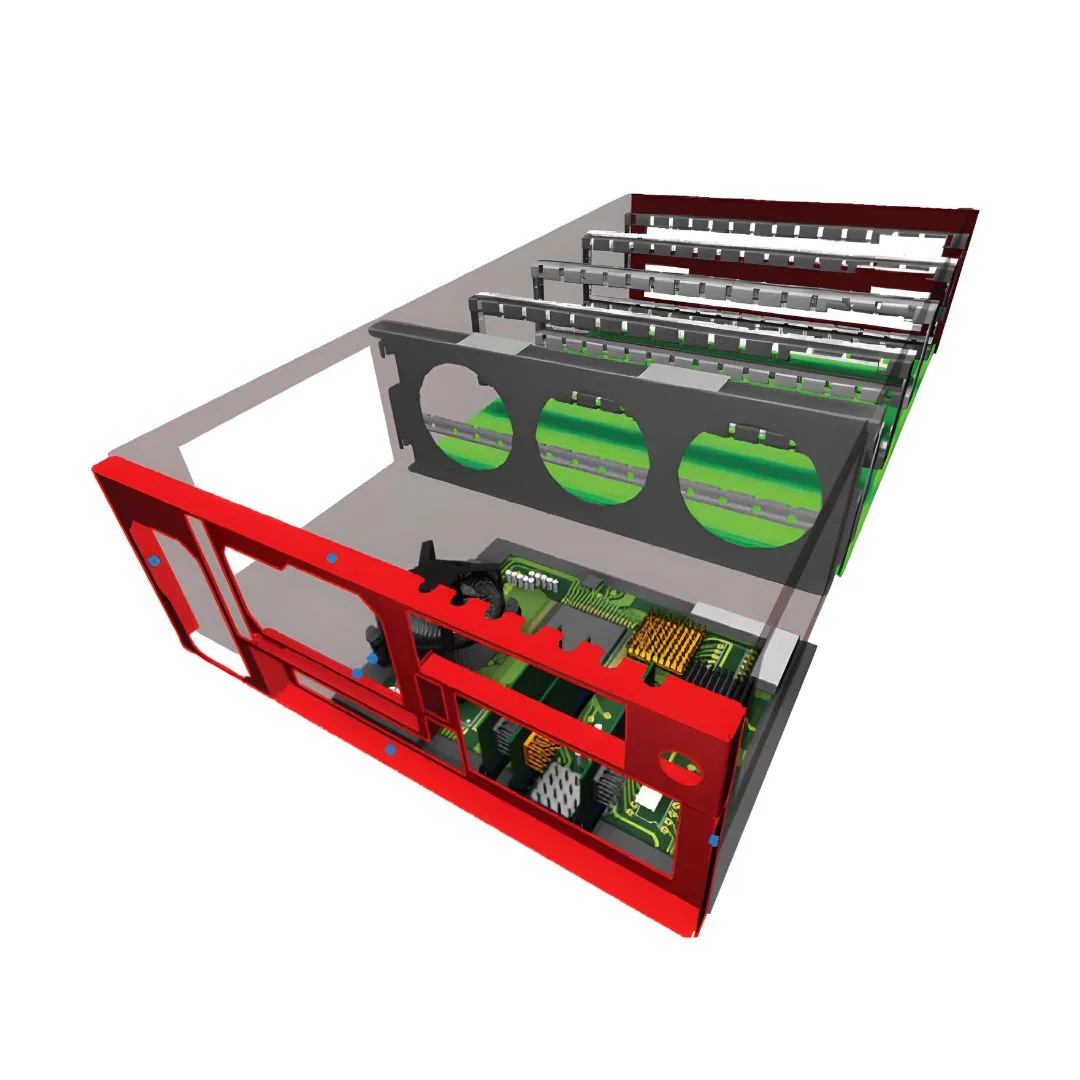

Imports complex MCAD & ECAD geometries.
Expanded 1D Flow Network Capabilities
Scalable to high-complexity systems with hundreds of cores.
Animation and Report Generation
High-Performance Computing (HPC) Integration

Benefits:

Intelligent modelling objects.
Seamless CAD and PCB integration.
Automatic mesh generation and customizable reporting.
Powerful solver with parallel processing.
Reduces costly design respins and engineering delays
Improves product performance and reliability
Scales to hundreds of cores for addressing high-complexity systems

Applications:

Electronics Design
Automotive Industry
Telecommunications
Aerospace and Defence
Medical Devices

Accelerate Engineering Breakthroughs with Fidelity CFD Software

Computational fluid dynamics (CFD) simulates fluid behavior and thermodynamic properties using numerical models. Cadence Fidelity CFD software enhances design processes like propulsion and aerodynamics, optimizing product efficiency without costly physical testing. With streamlined workflows and advanced solver technology, Fidelity boosts engineering productivity across aerospace, automotive, turbomachinery, and marine sectors.

KEY BENEFITS:

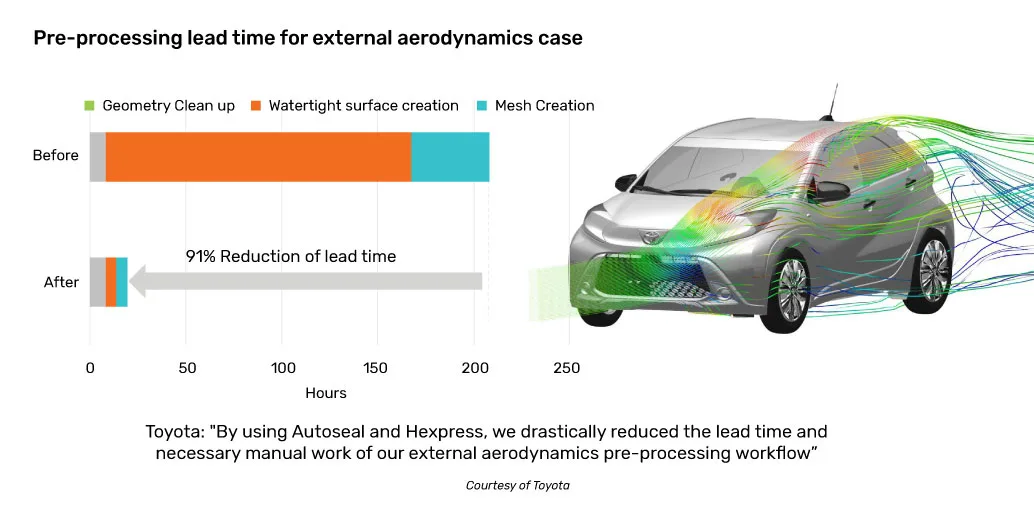

Fast, Reliable Pre-processing: Reduce lead times from days to hours with efficient mesh generation.
Highest Accuracy: Accurately predict flow dynamics and aerodynamic performance.
GPU Acceleration: Enhance CFD simulations with 9X throughput compared to CPUs.
AI-Driven Optimization: Accelerate time-to-market and lower design risks with intelligent analysis.

FEATURES:

State-of-the-art Technology Delivers Unprecedented Speed and Accuracy

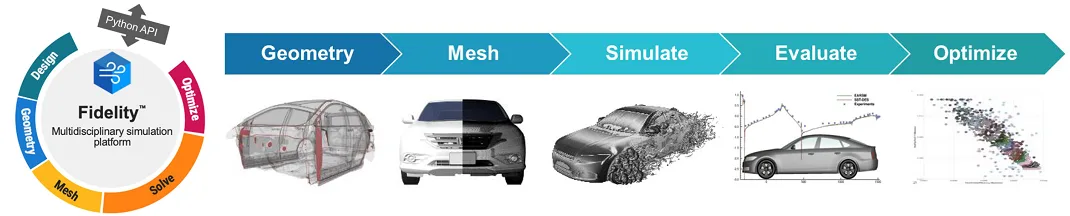

Fidelity CFD software automates geometry preprocessing and meshing, reducing time from days to hours with AI-driven methods. It ensures high-fidelity meshes with complete viscous layer coverage for precise results.

The Fidelity CharLES solver is a pioneering high-fidelity CFD tool that extends large eddy simulations (LES) to diverse engineering fields like aerospace, automotive, and turbomachinery. It combines advanced numerical schemes and GPU acceleration to handle extensive LES, such as accurately simulating an aircraft landing configuration in just 12 hours, using modest computing resources.

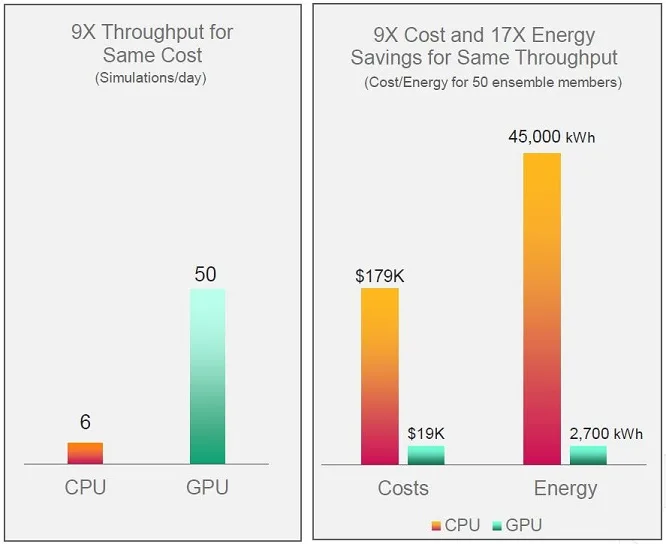

GPU acceleration is revolutionizing high-fidelity CFD, significantly influencing aerospace, automotive, and various industries. Utilizing modern computing architectures offers 9X higher throughput at a fraction of the energy cost compared to CPUs.

INDUSTRIES:

Customized CFD Solutions for Key Industries

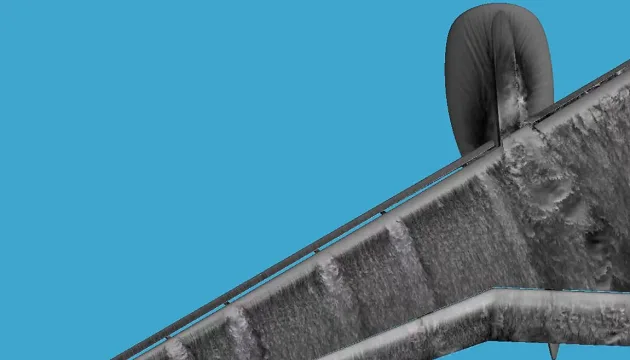

Fidelity has been utilized to simulate high-speed aircraft across subsonic, transonic, and supersonic ranges, achieving significant successes in commercial aviation. Key focuses include aerodynamic forces, flow separation predictions in complex configurations, and aeroacoustics.

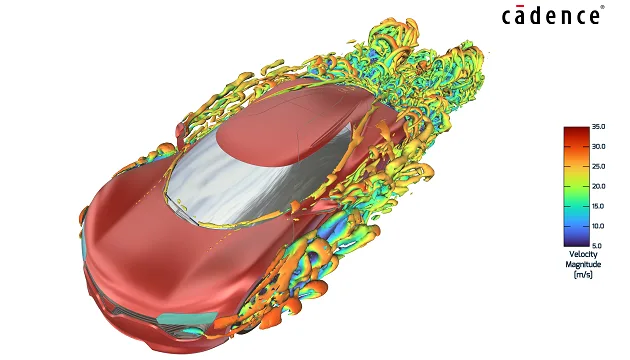

External aerodynamics, thermal management, and acoustic noise modeling are critical areas for enhancing vehicle efficiency and comfort. Fidelity CFD offers specialized solutions tailored to tackle these engineering challenges.

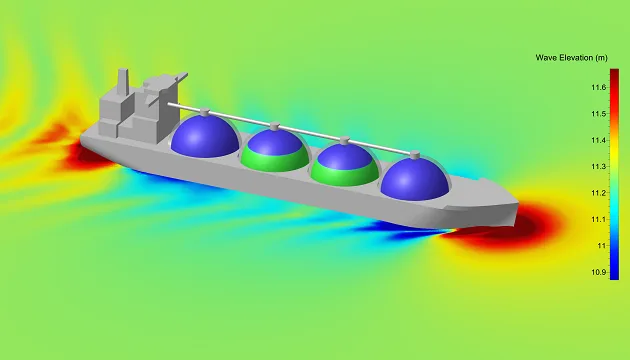

In the marine industry, current priorities include reducing operating costs, cutting emissions, and maintaining safe power margins. Fidelity CFD software offers specialized tools to enhance propeller efficiency, reduce ship resistance, optimize performance, and improve fuel efficiency, addressing these critical challenges effectively.

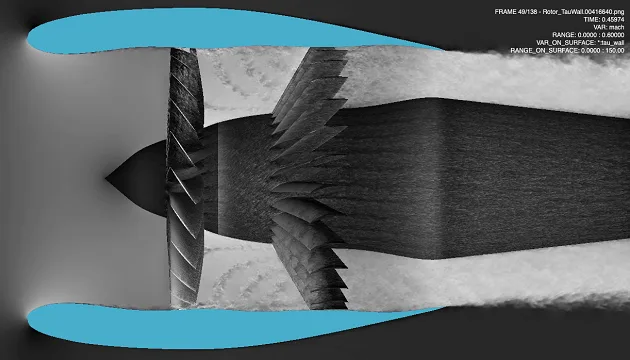

Fidelity CFD offers tailored solutions for engineers to swiftly and precisely optimize turbomachinery power and efficiency. By integrating high-fidelity meshing, advanced numerical methods, automated design experiments, and sophisticated optimization tools, designers can maximize performance without compromising efficiency or exceeding design limits.

Cadence Reality Data Center Solutions for Optimized Design and Operations

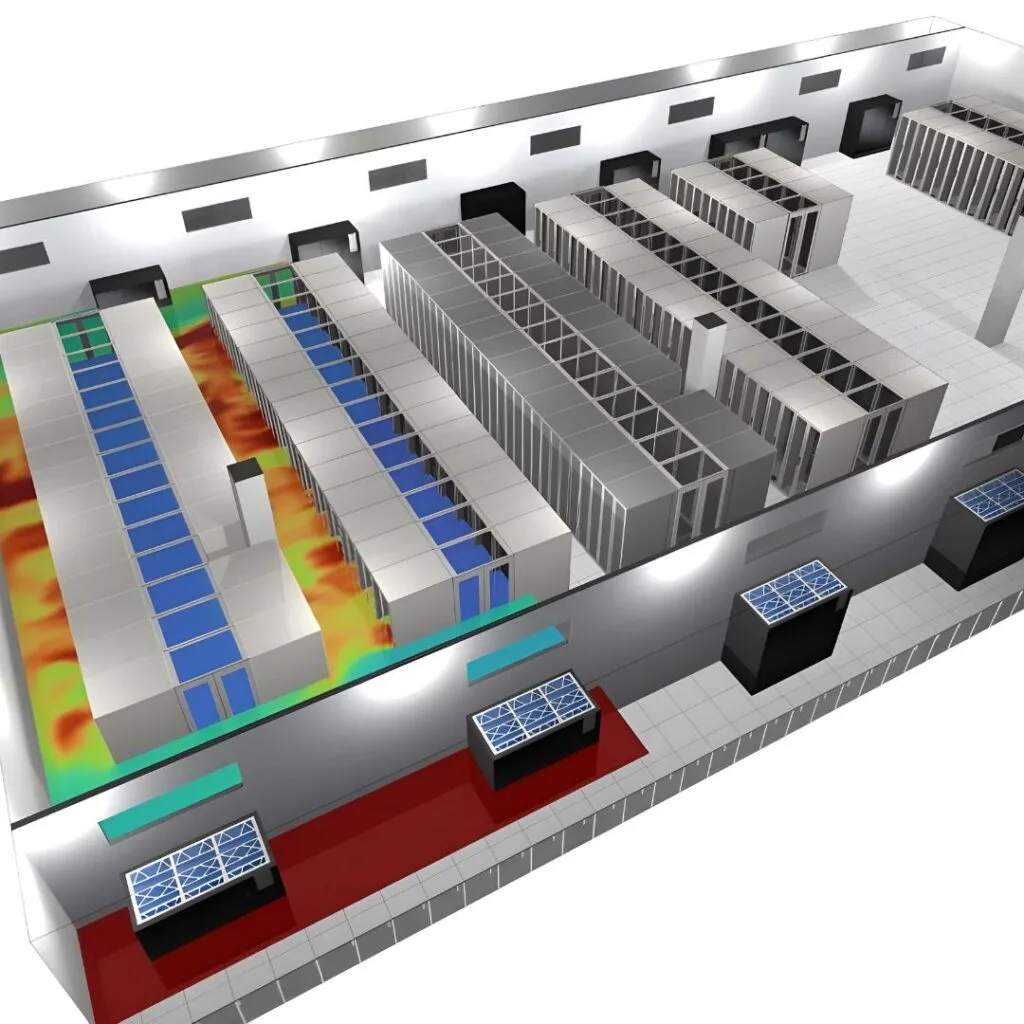

Cadence offers Cadence Reality DC for designing and planning data centers with performance-driven digital twin technology. This enables data center professionals to future-proof designs and evaluate operational decisions in a virtual environment. Cadence’s digital twin solutions help balance reliability and efficiency for data center designers, owners, and operators

Key Benefits:

Drive Next-Generation Data Center Design and Operations
Ensure Sustainable Practices with Carbon Usage Analytics and Energy Efficiency Reports

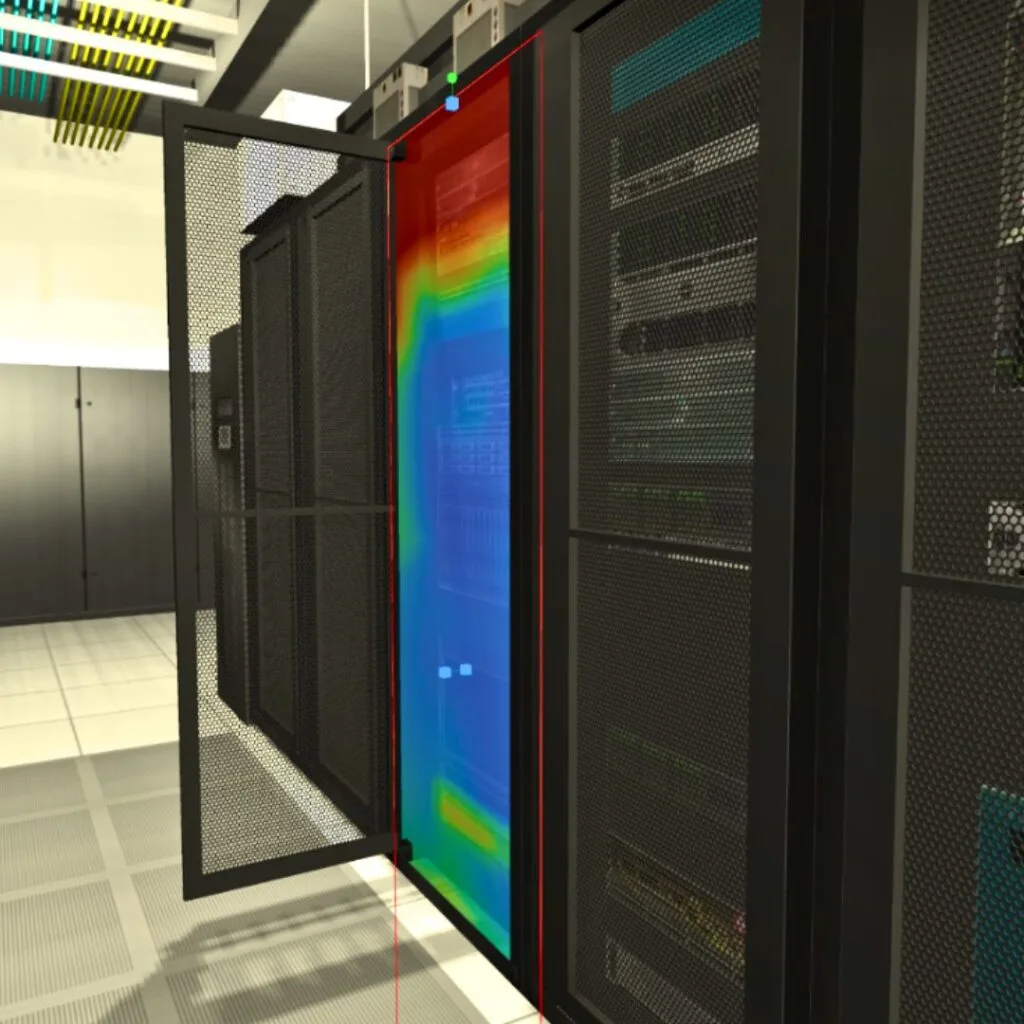

Visualize and Optimize Data Center Performance in a Digital Twin Environment
Facilitate Team Collaboration and Management Alignment
Implement Proactive Resource Planning and SLA Compliance

Features:

Virtualize the entire data center ecosystem with Cadence’s digital twin solutions.
Model complex cooling strategies and control systems.
Manage power connectivity and analyze network connectivity.
Conduct transient simulations to assess performance under varying conditions.
Generate customized reports with photorealistic images and videos.
Plan IT deployments with placement suggestions based on IT requirements and availability.
