Imperix specializes in high-performance control systems and prototyping tools for advanced power electronics. Offering modular, reusable hardware and intuitive software, Imperix enables engineers to accelerate the transition from simulation to real-world deployment. Trusted in over 50 countries, its solutions support the entire development cycle — from laboratory testing to industrial-scale integration — across applications such as grid converters, microgrids, motor drives, EV charging, high-frequency converters, and modular topologies.
Founded in 2013 as a spin-off from EPFL and headquartered in Sion, Switzerland, Imperix is rooted in Swiss engineering precision and continuous innovation. In India, Pantronics India Pvt. Ltd. is the sole authorized developer and distributor, providing localized technical support and tailored solutions for academia and industry.
Imperix's Rapid Control Prototyping Systems for Power Electronics
As the official Imperix distributor in India, we bring Swiss-engineered power electronics solutions to local innovators. Our offerings include Imperix’s DSP+FPGA power electronics controllers, FPGA-based prototyping systems, and rapid control prototyping hardware, all designed to accelerate innovation in academia and industry
APPLICATION SEGMENTS
COMMON USE CASES FOR RAPID CONTROL PROTOTYPING
RAPID CONTROL PROTOTYPING AN ECOSYSTEM OF POWER ELECTRONICS PROTOTYPING TOOLS

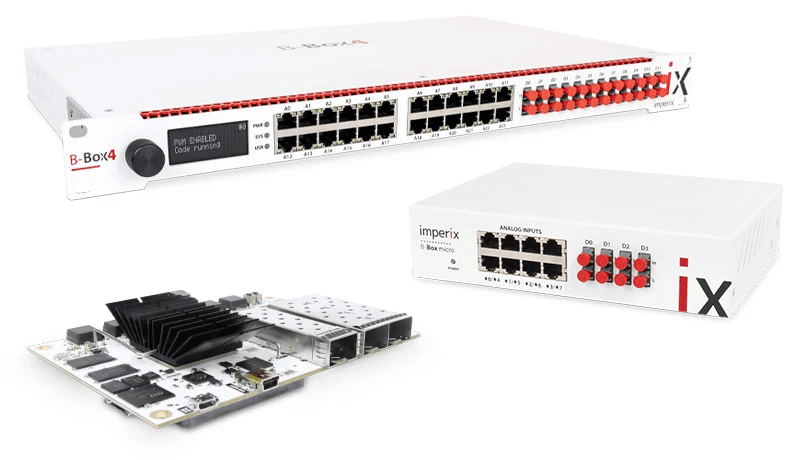

Programmable Controllers for Power Electronics
Imperix controllers are designed for advanced power electronics applications, providing complete solutions for Rapid Control Prototyping (RCP). From academic research and teaching labs to industrial integration, these programmable controllers accelerate development with reliable, high-performance results.

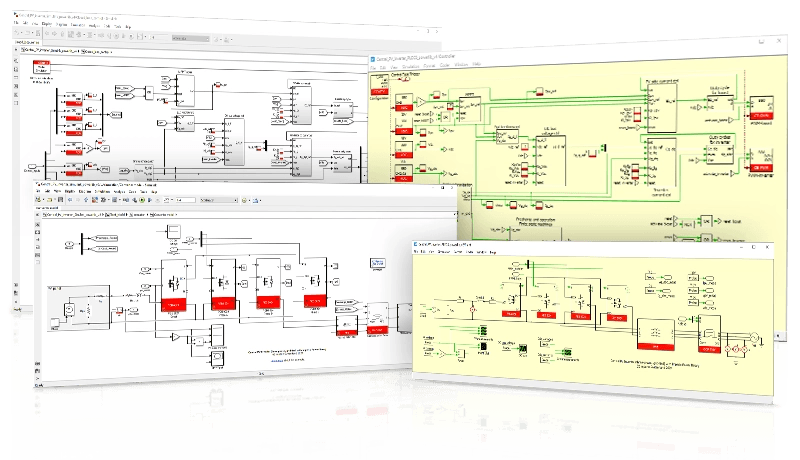

Control Development Toolkits
Imperix offers dedicated Simulink and PLECS blocksets that simplify graphical programming, simulation, and code deployment—helping engineers move seamlessly from model to hardware testing.

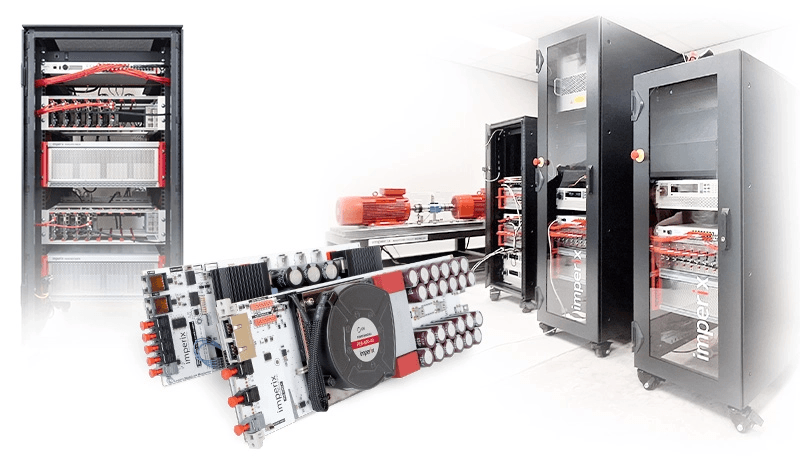

Power Prototyping Hardware
Build converter prototypes faster with modular, plug-and-play power modules. These customizable solutions support integration from standard bundles to complete turnkey systems.

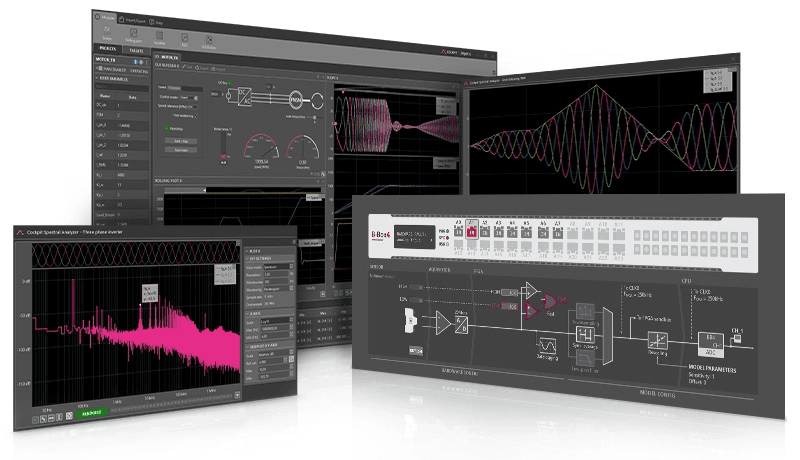

Monitoring & Analysis Software
Cockpit software gives real-time access to measurements and control variables, acting as an embedded oscilloscope. With advanced scoping and live data analysis, it enables quick debugging and system optimization through an intuitive interface.
Control

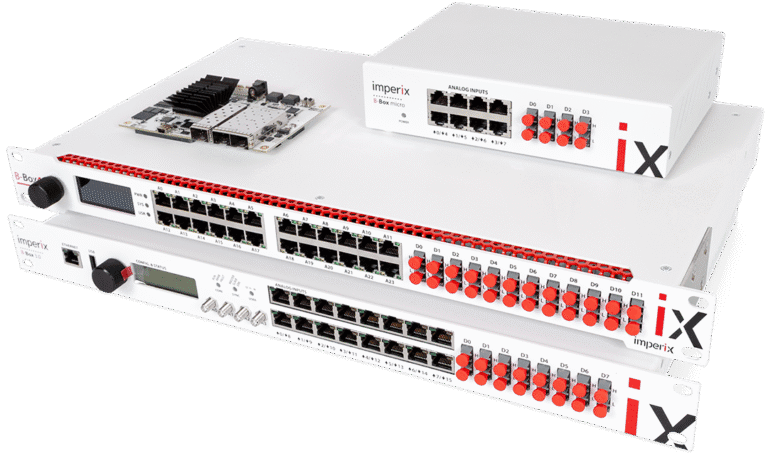

Complete Family of Power Electronic Controllers
This family of digital controllers includes four models tailored for distinct use cases:
system with integrated scoping and ability to monitor in real time.
- B-Box 4 – A higher-performance rapid control prototyping system with integrated scoping and ability to monitor in real time.
- B-Box RCP 3.0 – A development controller with versatile interfaces for experimental control applications.
- B-Box Micro – A compact controller for use in classrooms and lighter academic conditions at an excellent price.
- B-Board PRO – A complete embedded controller with programming capability that can be deployed as a power converter or power electronic controller in a production environment.
For education, laboratory research, or production, all of our digital power electronic controllers have quality, scalability, and reliability values that will enhance creative engagement across the entire power electronics ecosystem.
PLUG-AND-PLAY CONTROLLERS
Imperix Controllers

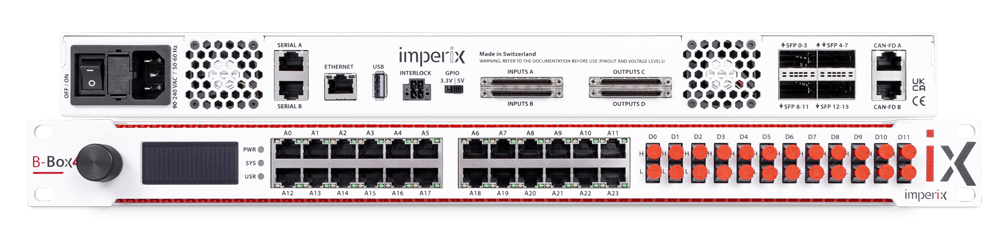

B-Box 4
- Flagship controller
- Class-leading analog frontend
- Numerous I/Os and protocols
- Suitable for distributed control
- Directly plug-&-play with imperix power modules
- Large FPGA, user-programmable
- Ultrafast, firmware-level protections

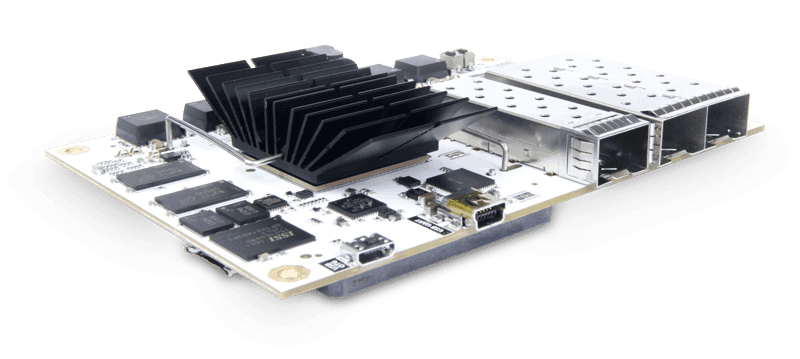

B-Board BOX
- Industrial controller
- Embeddable, small form factor
- Numerous, board-level I/Os
- Suitable for distributed control
- User-programmable FPGA
- Software-level protections
B-Box Micro
- Teaching-oriented controller
- Limited I/Os
- Directly plug-&-play with imperix power modules
- User-programmable FPGA
- Firmware-level protections
48× electrical
Unified Workflow, One Software
All Imperix controllers share a common software platform, allowing engineers to program with the same blockset or C/C++ functions. With Imperix Cockpit, testing and real-time monitoring remain consistent, ensuring a seamless experience across every controller.
Imperix Unified Software Workflow
1 – System Programming
Digital controllers are programmed using automated code generation toolboxes for Simulink and PLECS or via C/C++ coding.
Code generation, compilation, and upload happen with one click—no special skills needed.
2 – Run-Time Execution
Controllers can operate alongside a PC or standalone. Direct execution access is provided by the Cockpit software.
DSP and FPGA parameters can be edited and tuned in real time during operation.
3 – Live Monitoring
Controllers support real-time access for monitoring and tuning, simplifying debugging and maintenance.
The Cockpit software also offers oscilloscope-style datalogging for tracking variables over time.

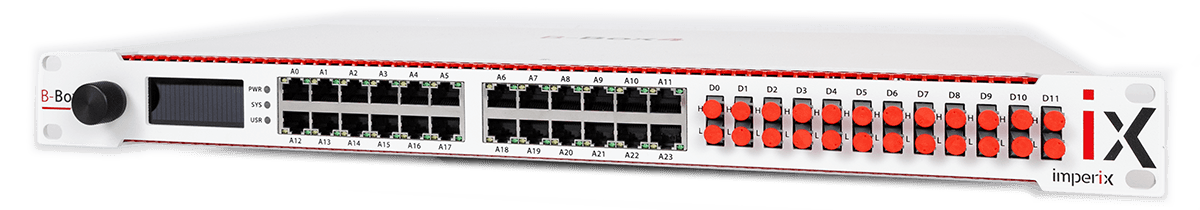

B-Box 4
Flagship Controller for Rapid Control Prototyping Applications
The B-Box 4 is a high-speed and flexible control platform designed for rapid prototyping of next-generation power electronics systems. With advanced processing power and precision, it enables engineers to develop, test, and validate control algorithms efficiently for SiC and GaN-based converters.
- Rapid prototyping controller
- Inverter control hardware
- Electric motor drive controller
- Power converter controller
- Programmable inverter controller
- Built on AMD Zynq UltraScale+
Oversampling & Integrated Scoping — How does B-Box 4 capture and visualize signals?
- 24 analog inputs @ 20 MSPS with 16-bit resolution and ±10 V range for accurate measurement.
- FPGA path streams every sample to the host PC—independent of control frequency.
- Plot PWM and measurements directly in Cockpit — no oscilloscope needed.
Faster CPU, Bigger FPGA — What performance gains does the B-Box 4 offer?
- AMD / Xilinx UltraScale+ quad-core 1.5 GHz ARM + Kintex-grade FPGA (≈ 504 K logic cells).
- Runs control algorithms up to 500 kHz on CPU with real-time precision.
- 5× larger FPGA area pushes control speed to ~800 kHz and beyond.
High-Resolution PWM — Why does 250 ps matter?
- HR-PWM (250 ps resolution) on all channels for ultra-fine duty control.
- Ideal for SiC / GaN stages with MHz-class switching.
- Enables high-precision control and cleaner modulation.
Super-Flexible I/O — Which interfaces and ports are available?
- Protocols: OPC-UA, MODBUS TCP, CAN-FD, BiSS-C, EnDat 2.2, SSI via RS485/422.
- High-speed links: 4× QSFP+ (40 Gbps) expandable to 16× SFP+.
- General I/O: 24× GPO, 24× GPI, 36 FPGA pins for custom logic.
- Analog ports: 24× bidirectional outputs @ 250 ksps for loopback tests.

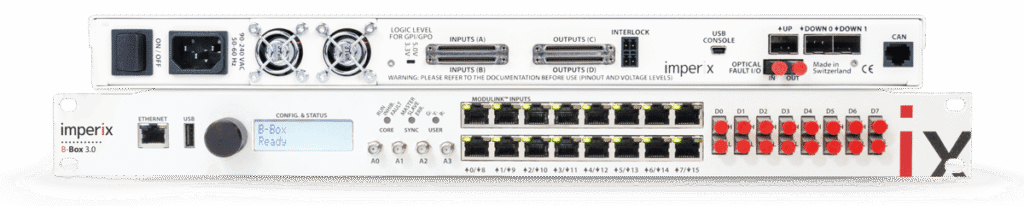

B-Box RCP 3.0
DSP+FPGA Controller for Rapid Control Prototyping Applications
The B-Box RCP 3.0 is a highly flexible power converter control system, tailored for rapid control prototyping in power electronics. Benefitting from imperix’s high software and hardware flexibility, the B-Box RCP 3.0 facilitates the experimental validation of power converter control techniques in laboratory environments. This controller has a lower I/O count than the B-Box 4, but also a reduced cost.
- Rapid prototyping controller
- Inverter control hardware
- Electric motor drive controller
- Power converter controller
- Programmable inverter controller
- DSP+FPGA control system
Tailored Design — What makes B-Box RCP 3.0 purpose-built for RCP?
The B-Box RCP 3.0 is entirely and exclusively tailored to be a rapid prototyping controller. It notably distinguishes itself by the very high flexibility of its analog front-end and specialized I/O interfaces. The controller also guarantees strict timing management—from analog inputs to PWM outputs— including in stacked configurations.
High-End Design — What’s inside the programmable target?
The programmable target embeds a high-performance AMD Xilinx Zynq device, including a dual-core ARM processor and a Kintex-grade FPGA. Together with an ultra-light, specialized operating system, this delivers excellent performance for closed-loop control applications. Running converter control algorithms in the hundreds of kHz range is no longer a challenge.
Scalable Design — Can I stack multiple controllers?
Yes. Multiple converter control units can be stacked to build larger controllers— up to 64 boxes—extending to thousands of I/Os. This offers high flexibility across projects: combine or separate units depending on evolving application needs.
Future-Proof Design — Will my code keep working over time?
The DSP and FPGA are supported by a strong hardware abstraction layer that guarantees system stability over time and across hardware evolution. In practice, code that works today will still work in the future, even if the hardware changes in-between.

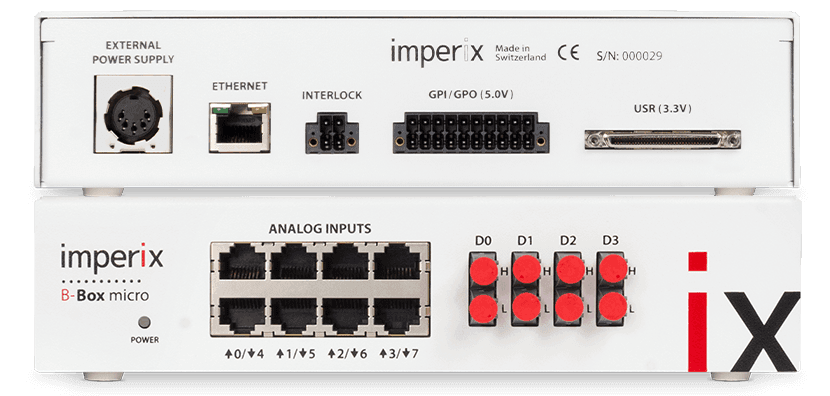

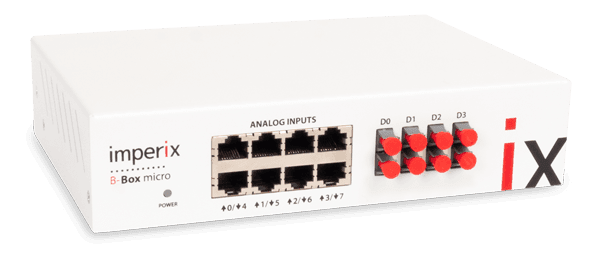

B-Box Micro
Table-Top Power Inverter Controller for Teaching Applications
The B-Box Micro is a compact and efficient table-top inverter controller designed specifically for power electronics education and laboratory training. It offers a safe, user-friendly platform that allows students and researchers to seamlessly transition from simulation to real-time experimentation without any risk — even for beginners.
- Programmable inverter controller
- Table-top inverter controller
- Power converter controller
- DSP+FPGA control system
- Teaching power electronics
- Power laboratory equipment
Cost-Effective Learning Platform
The B-Box Micro offers a budget-friendly solution for implementing a wide range of power electronics experiments and inverter topologies. It delivers premium performance at an affordable price, making it ideal for academic institutions and research labs looking to maximize value without compromise.
Plug-and-Play Connectivity
Designed for quick setup and easy integration, the B-Box Micro includes all essential I/O interfaces to connect seamlessly with imperix power modules, voltage sensors, and current sensors. Users can access a wide range of ready-to-use application examples and tutorials through the Imperix Knowledge Base, enabling them to get started within minutes.
Simplified Graphical Programming
The controller supports C/C++ programming as well as direct code generation from Simulink or PLECS. With its automated one-click toolchain, users can instantly deploy their control algorithms to hardware — bridging the gap between simulation and experimentation effortlessly.
Ideal for Teaching and Research
Equipped with configurable safety limits, the B-Box Micro safeguards power semiconductors, ensuring a safe hands-on experience for students. Its compact, table-top design saves valuable lab space while maintaining high flexibility for academic experiments, student projects, and research work.

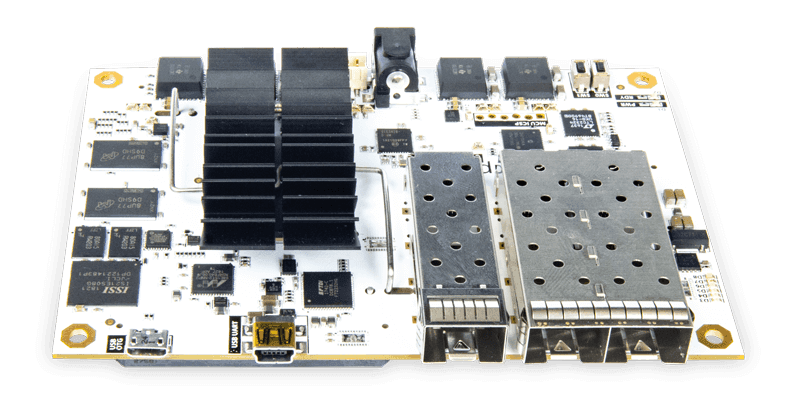

B-Board PRO
Embedded DSP+FPGA Controller for Real-Time Power Electronics
The B-Board PRO serves as the core processing unit of the B-Box 3 Controller and is also available as a standalone embedded controller. Powered by a Zynq-based dual-core ARM processor and a Kintex-grade FPGA (Xilinx Zynq), it delivers high-speed computation and real-time control performance. With its advanced communication interfaces and comprehensive I/O options, the B-Board PRO is ideal for embedded power electronics, industrial automation, and real-time control applications.
Inverter Control BoardUser-Programmable FPGA
No FPGA expertise is required to start working with the B-Board PRO. It comes pre-configured with a highly flexible FPGA firmware ready for immediate use. For advanced users, the platform supports custom FPGA code editing, easily integrated into existing DSP software. Its dual-core processor dedicates one core to real-time closed-loop control tasks (bare-metal kernel) and the other to supervision and monitoring (Linux). With many low-level functions handled directly within the FPGA, the system achieves exceptional real-time responsiveness—up to 200 kHz control frequencies in closed-loop operation.
High Processing Power
The programmable control module is built around a dual-core processor designed for maximum computational efficiency. One core focuses exclusively on fast closed-loop control tasks, while the other manages system monitoring and communication. By offloading low-level processes to the FPGA, the system fully leverages a high-speed floating-point processor core for real-time operations. This architecture ensures best-in-class performance, capable of reaching 200 kHz control frequencies—ideal for demanding power-electronics and industrial automation applications.
Quick and Seamless Integration
Fully compatible with the B-Box prototyping system, the B-Board PRO shares the same software tools, environment, and user interface. It can be programmed directly from Simulink and monitored using BB Control, ensuring a smooth workflow from rapid prototyping to embedded implementation. Integration efforts are minimal—mainly limited to mechanical setup, signal conditioning, and protection circuitry, which are usually application-specific. This makes the B-Board PRO a versatile and scalable solution for both research and industrial environments.
Power

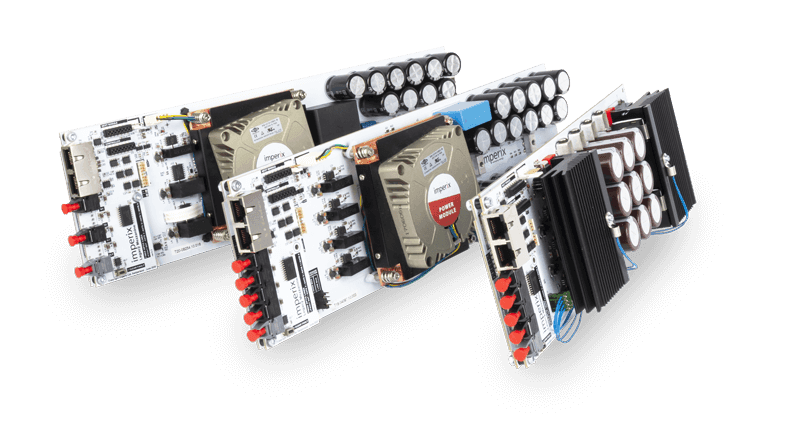

Imperix Power Inverter Modules
Imperix power inverter modules are modular building blocks designed for rapid prototyping of power converters and three-phase power conversion systems. These ready-to-use modules form a modular inverter platform that accelerates development of grid-connected converters and other advanced power electronics applications. Optimized for engineers and researchers, the modules offer high performance and flexibility to validate converter designs in both research labs and industrial R&D environments.
Imperix provides both Silicon Carbide (SiC) inverter modules and IGBT-based modules, catering to high switching frequency demands and high-power requirements. Their plug-and-play design ensures ease of integration, allowing seamless interoperability with Imperix controllers or custom control setups. This modular approach enables quick assembly of complex converter topologies – such as multi-level designs or complete three-phase inverters – delivering a scalable solution for grid-connected converters and innovative power conversion research. Additionally, with laboratory power ratings from 100W to 100kW, they cover a broad spectrum of prototyping needs.
POWER ELECTRONIC BUILDING BLOCKS
Modular Power Inverter Solutions for Laboratory and Research Applications
Speeding Up Control Testing With Imperix Power Inverter
ModulesPrototyping of power converters in power electronics is an important step in the research and development of our next generation of devices. Whether after simulations, or hardware in the loop (HIL) verification, most engineers want to validate proof-of-concept prototypes or converters in the field under realistic conditions.
Imperix power inverter modules with plug-and-play solutions can easily set up a scalable platform for evaluating converter prototypes into many styles of convertible topologies. More importantly, these inverter modules are designed to operate work with rapid control prototyping (RCP) systems. It allows researchers to effortlessly test control software with converters and help facilitate laboratory initiatives to rapidly experiment, reduce the hardware set up time while maintaining further assurance of performance validation in control of power converter systems.
Implementing Versatile Power Converters
Our power inverter modules are built to support both teaching and research in modern power electronics laboratories. Designed for flexibility, they enable everything from industrial inverter control software testing to hands-on demonstrations of basic converter control techniques in academic environments.
With adaptable internal structures, these modules offer unlimited configuration possibilities—allowing engineers and students to explore a full spectrum of converter topologies. Each inverter module is available with either IGBT or MOSFET semiconductors, ensuring high performance, efficiency, and compatibility across diverse applications.

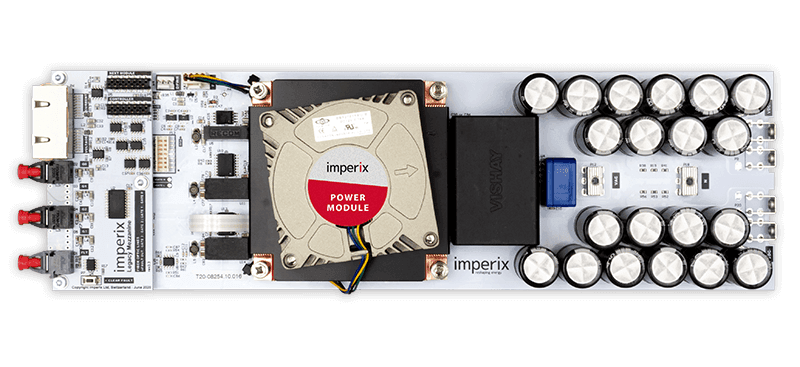

Half-bridge module
PEB8038 – 800V/38A
SILICON CARBIDE MOSFETS
Grid-connected inverters and motor drive applications, up to 8kW per module.
Half-bridge module
PEB8024 – 800V/24A
SILICON CARBIDE MOSFETS
Fast-switching and medium-frequency applications, up to 200kHz.
Half-bridge module
PEB4050 – 400V/50A
SILICON IGBTS
120VAC, teaching and general-purpose applications, up to 6kW per module.

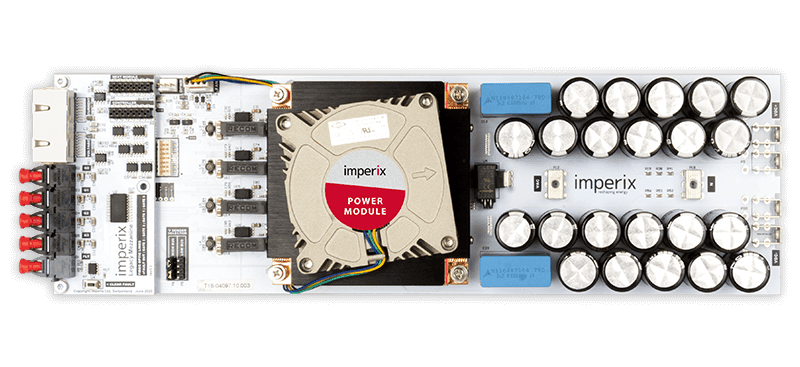

NPC power module
PEN8018 – 800V/18A
SILICON IGBTS
Three-level Neutral Point Clamped (NPC) converters up to 4kW per module.
H-bridge module
PEH2015 – 200V/15A
SILICON IGBTS
Multilevel converters (e.g. MMC) and teaching applications, up to 400W per module.

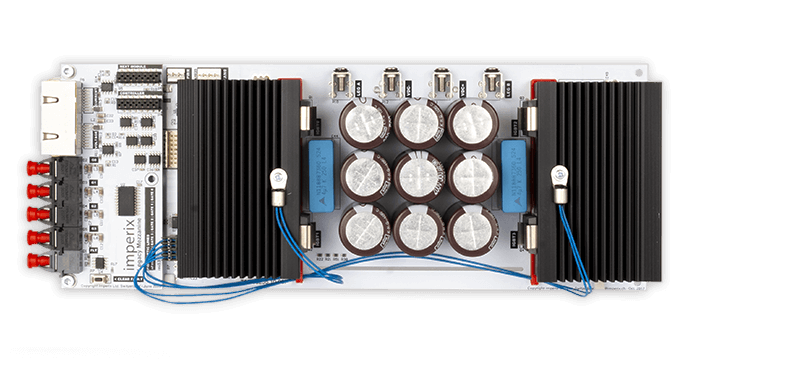

H-bridge module
PEH4010 – 400V/10A
SILICON IGBTS
Multilevel converters (e.g. MMC) and teaching applications, up to 400W per module.

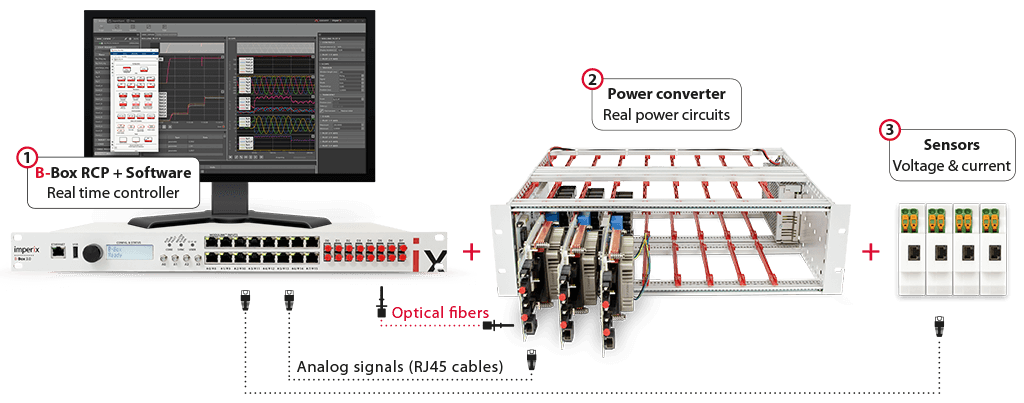

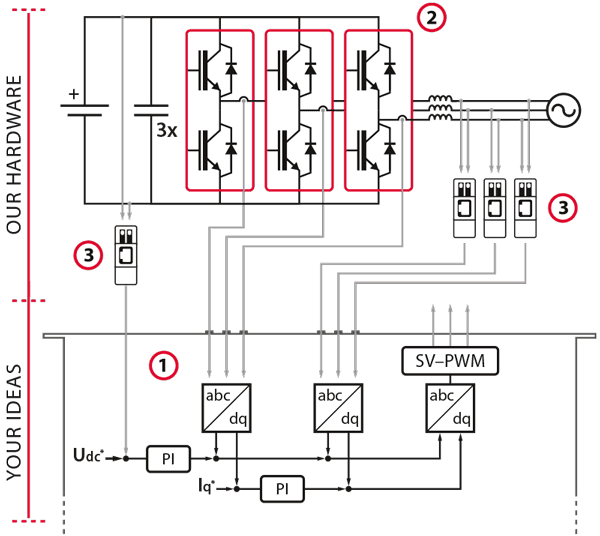

Rapid Control Prototyping Example
Plug-&-Play Three-Phase Inverter
By integrating Imperix rapid control prototyping solutions with dedicated control software tools, engineers can seamlessly design and test advanced power conversion systems — including inverters, rectifiers, DC/DC converters, and matrix converters.
In this setup, a three-phase power inverter is built using three modular inverter phase-leg units. For enhanced precision, current and voltage sensors are added to measure parameters not directly available from the inverter modules.
The entire converter control is developed and validated using the Rapid Control Prototyping (RCP) controller within Simulink or PLECS, enabling real-time testing, fast algorithm deployment, and safe experimentation without hardware risks.
Levels of Flexible Integration
We can supply our products as standalone and independent products, a turnkey system or variation of the two.
Plug & Play
Imperix products become plug & play when used together, but can still be used with any other controller and/or power stage.
Laboratory Power Ratings
Imperix products have proven well-suited for power converter prototype implementations ranging from 100W to 100kW.
Additional Usefull Accessories
Imperix have several accessories that are also helpful for laboratory-scale converter implementations.
Pre-configured systems
Imperix has several pre-configured product sets selected for normal teaching or research use.
Development examples
Imperix is developing at present a complete knowledge base of control code/software examples for free use.
MODULES INFERS FOR INVESTIGATION
HARDWARE OPTION INTEGRATION
Modules of Imperix Energy Inverters are best put together in frames or enclosures that can be rack-mounted. This will ensure the maximum flexibility, in virtue of the modular nature of the power module.

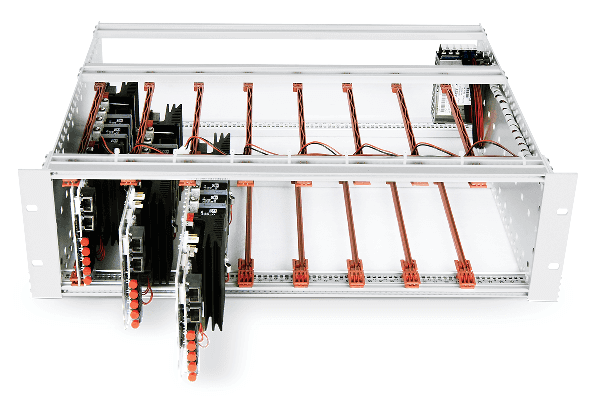

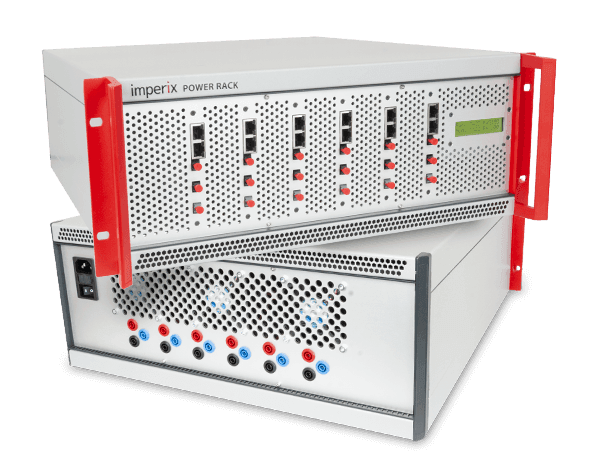

Versatile 3U rack-mountable enclosure
If you prefer an appropriate ease of use, imperix can deliver pre-assembled enclosures with power supplies, as well as several other features. This means the development modules are easy to reach and can easily go in or out of the enclosure, enabling easy changes to topology.
Enclosure with full integration (4U)
If it is a priority to elegantly integrate the modules, it is also possible to have them enclosed within rack-mountable engineered boxes. This also ensures that no dangerous voltage may ever be present except with a 4mm laboratory safety plug. The 4U enclosures will also have an LCD stating the status of the modules and the temperatures of the internal components.
All-in-one inverter (1.5U)
In the case of two-level three-phase inverters, the topology is so ubiquitous that modularity and reusability of the module is not usually a factor. In fact, a compact all-in-one solution makes more sense because it reduces wiring, can facilitate better EMC performance. The TPI8032 includes a 22kW inverter power stage with passive filters, relays, voltage/current sensors, and B-Board PRO embedded controller.
PRE-ASSEMBLED MODULES SETUP
FLEXIBLE POWER ELECTRONIC SOLUTIONS
Our laboratory solutions can be provided with different levels of integration. In fact, they can arrive either as only control hardware and power inverter modules, pre-assembled systems, or even as fully assembled power electronic test benches, ready to use.
Configuration Examples
Check out our kits and bundles to discover representative configurations on our power inverter modules.

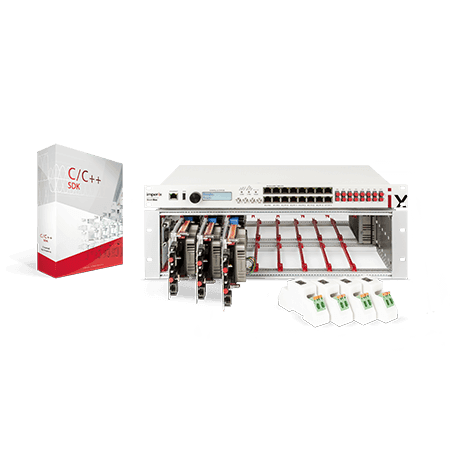

STARTER KIT
HARDWARE + SOFTWARE
POWER ELECTRONICS TEST BENCH
HARDWARE + SOFTWARE

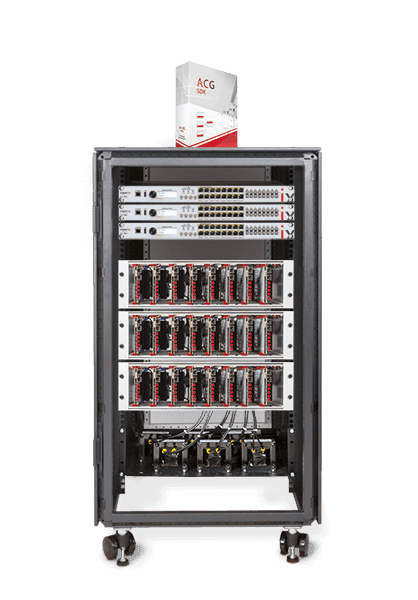

MMC TEST BENCH
HARDWARE + SOFTWARE
