Plexim

Plexim GmbH, located in Zurich, Switzerland, is a leader in simulation tools for power electronics and electrical drive systems. Since 2002, Plexim has created the well-known PLECS platform, which is widely used for designing electric vehicles, renewable energy systems, industrial drives, and power converters. Their solutions, which include PLECS, PLECS Coder, and RT Box, help engineers and researchers in various industries and academia speed up development, conduct real-time testing, and achieve smooth hardware integration.

Pantronics India Pvt. Ltd. is the only developer and authorized distributor of Plexim products in India. They provide complete support, training, and integration services for power electronics simulation and testing.

PLECS Simulation Software

Pantronics India Pvt. Ltd. is the only developer and authorized distributor of Plexim’s PLECS simulation tools in India. It provides innovative solutions for power electronics modeling and real-time simulation.

Explore Plexim's Product Portfolio

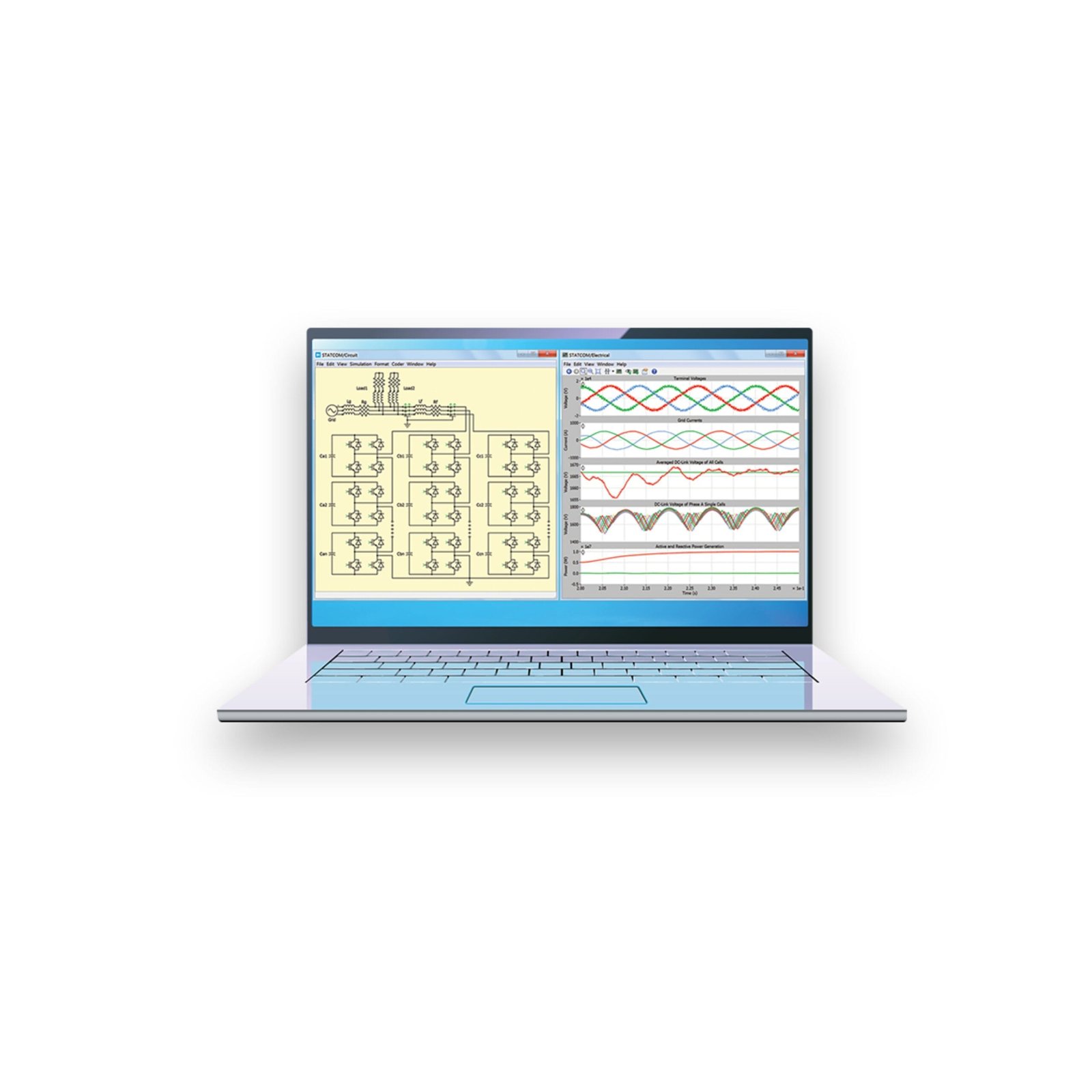

PLECS – Power Electronics Circuit Simulator

PLECS is simulation software designed for modeling and analyzing complex power electronic systems, electrical drives, and embedded control applications. Developed by Plexim and exclusively distributed in India by Pantronics, PLECS streamlines the design and testing process for engineers working on motor drives, converters, renewable energy systems, and electric vehicles (EVs).

PLECS comes in two editions to cater to different simulation needs:

PLECS Standalone – A fast, lightweight simulation platform that works independently of MATLAB®/Simulink®. It is ideal for real-time testing, rapid development, and system-level validation.
PLECS Blockset – This edition integrates directly with MATLAB®/Simulink®, offering modeling capabilities for detailed and large-scale simulations.

Model-based development in the automotive and industrial sectors

Designed for power electronics, PLECS supports thermal, control, and magnetic modeling with an easy-to-use, component-based workflow. Its quick simulation speed and flexible environment make it perfect for: – Electric vehicle system simulation – Solar and wind inverter development – Embedded controller design and validation – Thermal analysis of power semiconductor devices – Model-based development in the automotive and industrial sectors

Electric vehicle system simulation
Solar and wind inverter development
Embedded controller design and validation
Thermal analysis of power semiconductor devices

Key Features:

Available as Standalone or MATLAB®/Simulink® Blockset
Integrated modeling of power, control, thermal, and magnetic systems
Built-in component libraries for converters, filters, machines, and more
Optimized for real-time simulation and HIL workflows
Scalable from concept design to embedded implementation

PLECS Standalone Packages

The table below lists the platforms supported by PLECS Standalone. Download the appropriate package and follow the installation instructions.

Each package includes all necessary files for the following PLECS products. The features activated will depend on your license file:

PLECS Standalone
PLECS Coder
PLECS PIL (Processor-in-the-Loop)

Note: Administrator privileges are not required to install PLECS.

Platform	File Name
Microsoft Windows 64-bit	plecs-standalone-4-9-6_win64.exe (345566424 bytes) SHA1: 5bc0dcf81606c3bd2a1ec0c70b4456582464e098
Mac / Intel 64-bit	plecs-standalone-4-9-6_maci64.dmg (322917705 bytes) SHA1: 1e2f46dbdce665facfd0a316c90601fedb43ecaa
Mac / ARM 64-bit	plecs-standalone-4-9-6_maca64.dmg (305145708 bytes) SHA1: 533b56cb31b164e89b01be146eaa2eed26e47b9ba
Linux / Intel 64-bit	plecs-standalone-4-9-6_linux64.tar.gz (325175316 bytes) SHA1: 4cc99d9e4548846655fb24e51804e4c617107be7

PLECS Blockset Packages

To run PLECS Blockset, you need to have MATLAB and Simulink installed on your system. The table below shows the supported platforms and compatible MATLAB versions.

Download the right package and follow the installation instructions provided.

Each package includes all components for the following PLECS products. Your license file will determine which features are active:

PLECS Blockset
PLECS Coder
PLECS PIL (Processor-in-the-Loop)

Note: You do not need administrator privileges to install PLECS.

Platform	MATLAB Version	File Name
Microsoft Windows 64-bit	9.2 .. 25.1	plecs-blockset-4-9-6_win64.exe (312261848 bytes) SHA1: 8301f19cdc4db0cd8e3a74d96a6d9c06a3baf5f
Mac / Intel 64-bit	9.2 .. 25.1	plecs-blockset-4-9-6_maci64.dmg (314907025 bytes) SHA1: c0c5d8c41c2a4842e1c0d424ea5e04ece6703dad
Mac / ARM 64-bit	23.2 .. 25.1	plecs-blockset-4-9-6_maca64.dmg (297536387 bytes) SHA1: 25f083a103d2bf458d9e4e465198d7c1287c1a8
Linux / Intel 64-bit	9.9 .. 25.1	plecs-blockset-4-9-6_linux64.tar.gz (340952019 bytes) SHA1: d61c97d4fc798ac631c6fd019e46a5f25b1dd55f

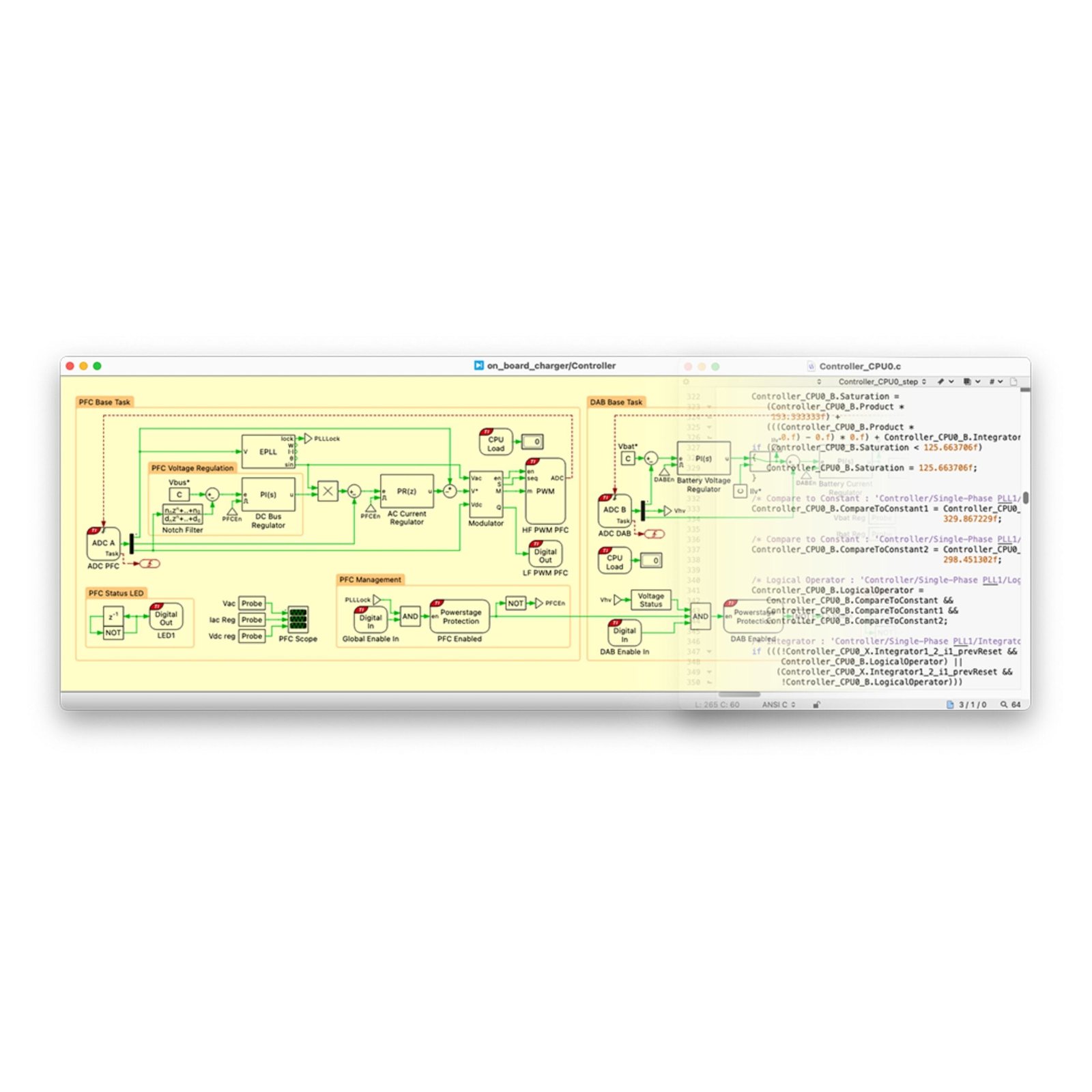

PLECS Coder – Code Generation for Power Electronics Microcontrollers

PLECS Coder is a fast, easy-to-use tool for generating embedded code directly from your control schematic, without the need for hand-coding. It is designed for engineers working on power electronics and electrical drive applications. It allows for smooth graphical programming of microcontrollers with integrated peripheral support.

With dedicated blocks for PWM, ADC, and GPIOs, PLECS Coder makes hardware configuration straightforward and helps you design nested control loops effortlessly. Its offline peripheral models allow for accurate simulation within the PLECS environment. This feature is perfect for quick testing, debugging, and deployment.

Whether you are working with TI C2000, STMicro STM32, or Infineon XMC families, PLECS Coder supports fast migration and multitasking control design, all within a single toolchain. It enables you to upload, run, and interact with live controller data in real time, improving your entire embedded development workflow.

Key Benefits:

No manual coding – drag-and-drop control logic design
Offline models simulate microcontroller behavior for early validation
Supports live parameter tuning and signal monitoring
Fast code generation and deployment to target MCUs
Built-in compatibility with C2000, STM32, and XMC devices
Accelerates development of inverters, drives, and converter systems

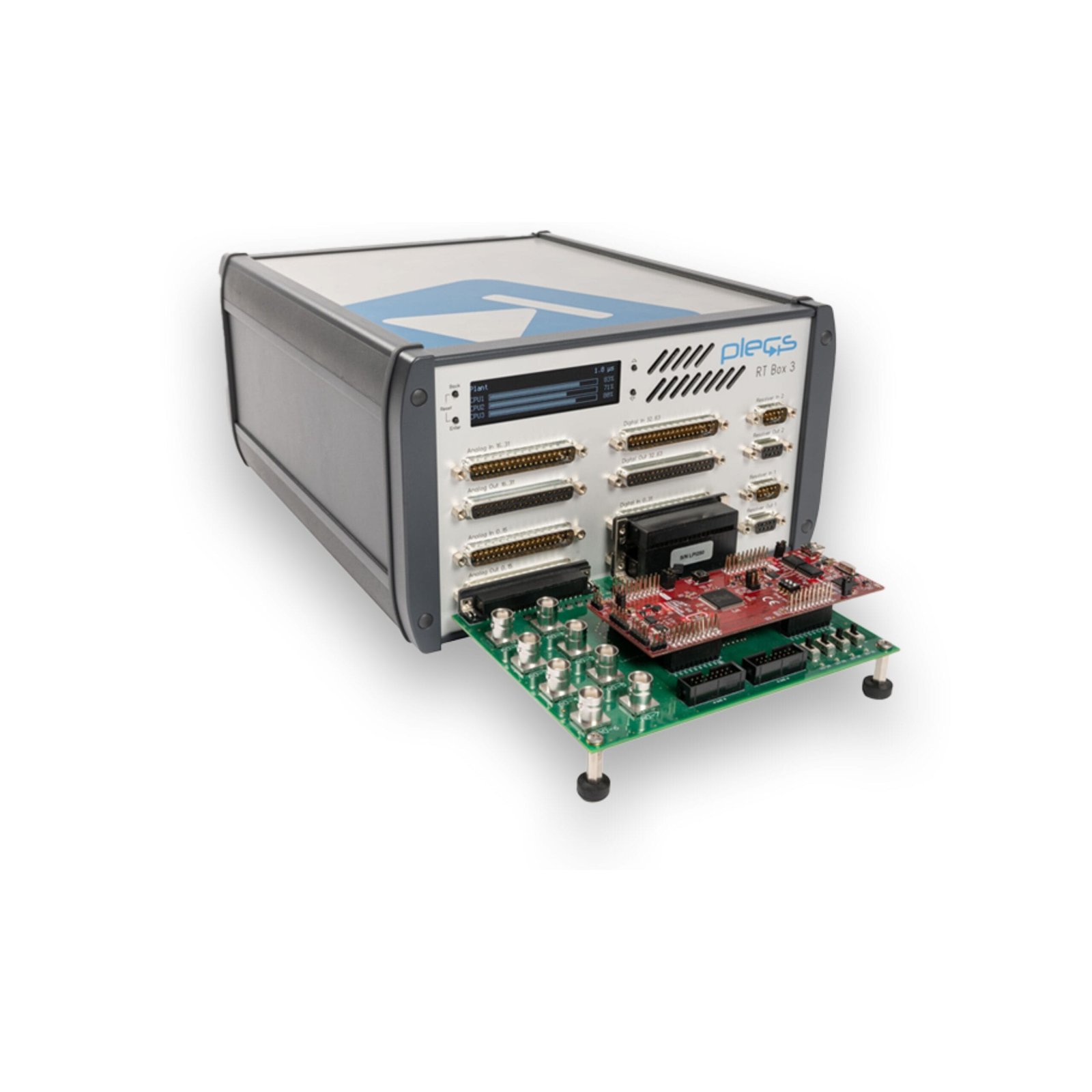

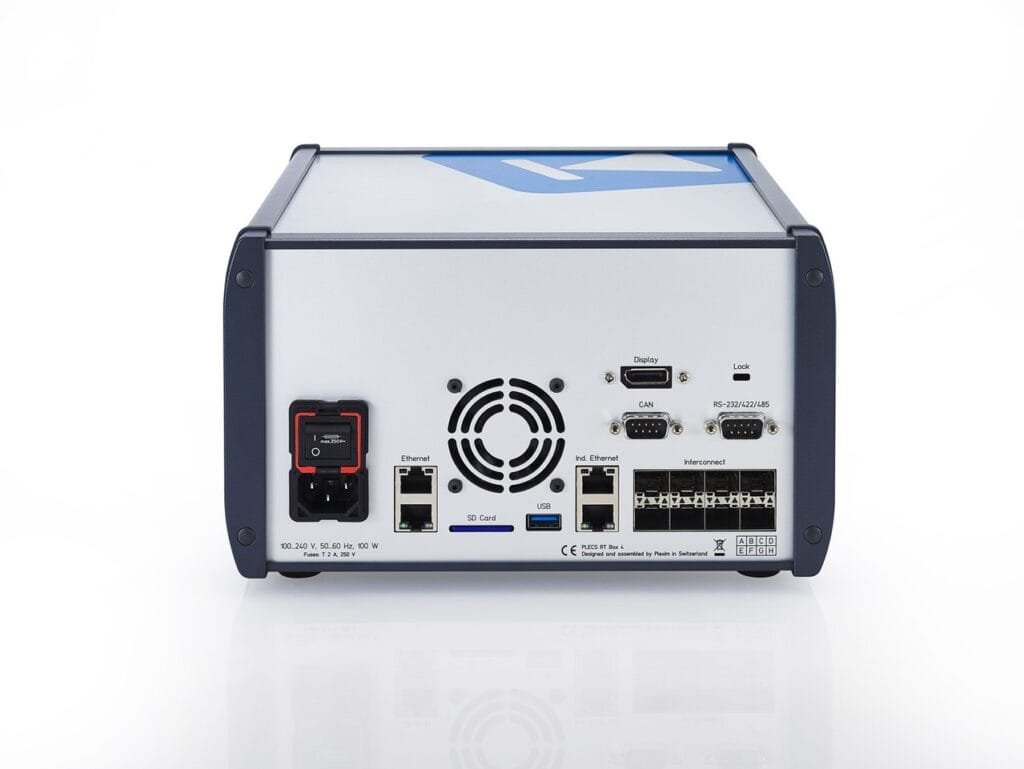

RT Box – Real-Time HIL Simulator for Power Electronics

RT Box is Plexim’s high-performance real-time simulator, specifically designed for hardware-in-the-loop (HIL) testing and rapid control prototyping of power electronic systems. It is available only in India through Pantronics. RT Box lets engineers test control strategies using virtual power circuits before deploying hardware. This approach reduces risk and speeds up development.

RT Box features advanced solver technologies, including the proprietary Nanostep® solver. It allows simulation time steps as low as 4 nanoseconds, which is perfect for high-frequency switching applications like dual active bridges, LLC resonant converters, and 3-phase inverters that operate at up to 1 MHz.

Whether validating embedded controllers or modeling large converter-based systems, RT Box provides fast signal processing, minimal loop latency, and high fidelity. These elements are critical for developing reliable power electronics in electric vehicles, renewable energy systems, and microgrids.

Key Benefits:

Real-time HIL simulation with PWM sampling resolution in nanoseconds
Nanostep® solver for sub-cycle precision and MHz switching
Rapid control prototyping with analog/digital I/Os and encoder interfaces
Supports TI C2000, STM32, and other embedded targets
Multi-core CPU + FPGA architecture (Xilinx Zynq/Ultrascale+)
Scalable for complex systems like MMC converters and distributed microgrids
Supports RCP, PIL, and large-circuit real-time execution
Easy model deployment from PLECS without external tools or bitstream delays

Ideal Applications:

High-speed converter simulation
Inverter & drive controller testing
Automotive, aerospace, and industrial control systems
Renewable energy (solar/wind) & battery systems
Educational labs and power electronics R&D

Platform	File Name
Microsoft Windows 64-bit	PLECS_RT_Box_3.1.5_win.zip (212751177 bytes)
Mac / Intel 64-bit, Arm 64-bit	PLECS_RT_Box_3.1.5_mac.zip (233094584 bytes)
Linux / Intel 64-bit	PLECS_RT_Box_3.1.5_linux.zip (229713838 bytes)
