RA128 Acoustic Imaging Thermal Camera

In today’s industrial world, from high-voltage substations to energy-heavy manufacturing sites, hidden dangers like partial discharges, compressed air leaks, and equipment failures can lead to real safety and financial issues. Small air leaks may seem insignificant, but they can lead to energy loss and higher utility bills over time. Additionally, problems with electrical cabinets or unnoticed mechanical faults can become serious safety risks or cause production delays.

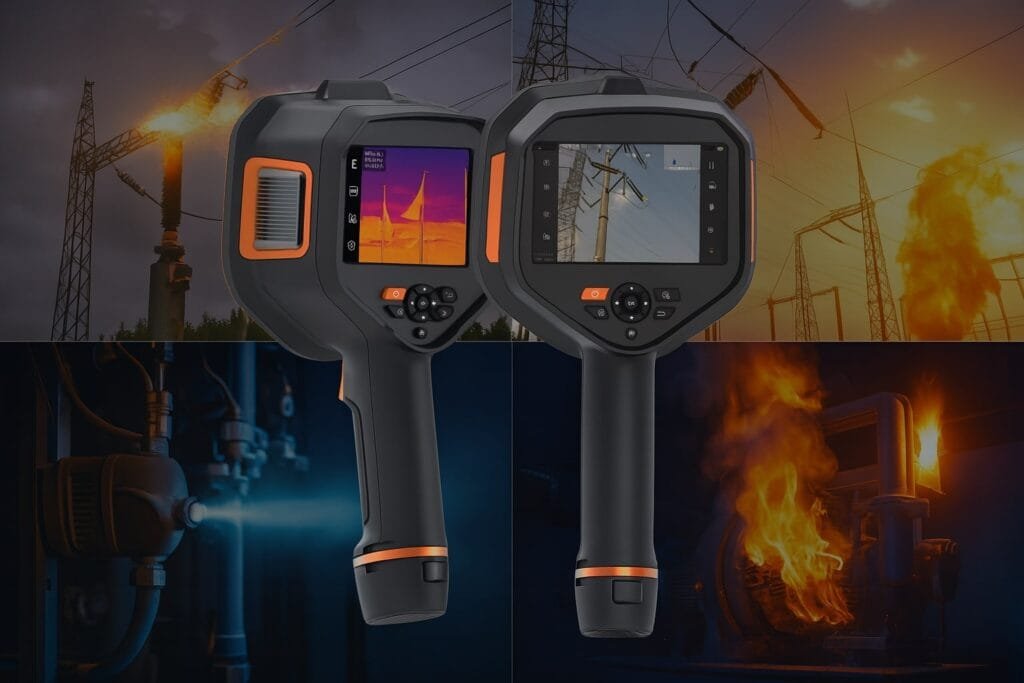

The Solution: RA128 Acoustic Imaging Thermal Camera

Introducing the RA128 Acoustic Imaging Camera, your partner in improving facility safety and efficiency. Distributed by Pantronics India and powered by RayThink’s unique acoustic technology, this device changes how you find and fix critical problems.

Why the RA128 is a Game-Changer

128-Channel MEMD Digital Microphone Array for accurate source detection
Real-time sound mapping with high clarity
Detects partial discharge as low as 200 pC at distances up to 3 m
Identifies leaks in vacuum, gas, and air systems
Durable, portable, and built to meet industrial standards

Technical Highlights

Ultra-Thin Coil: Just ~1.6 mm cross-section; fits around TO-220/TO-247 pins or compact busbars.
Wideband Performance: 30 MHz bandwidth captures fast switching, spikes, and harmonics.
High di/dt Measurement: Handles up to 100 kA/µs; ideal for IGBT/MOSFET waveform analysis.
Built-In Integrator: Outputs ±6 V signal directly; no external integrator required.
Non-Intrusive & Safe: Zero insertion loss and up to 1.2 kV insulation.

Key Advantages & Industrial Applications

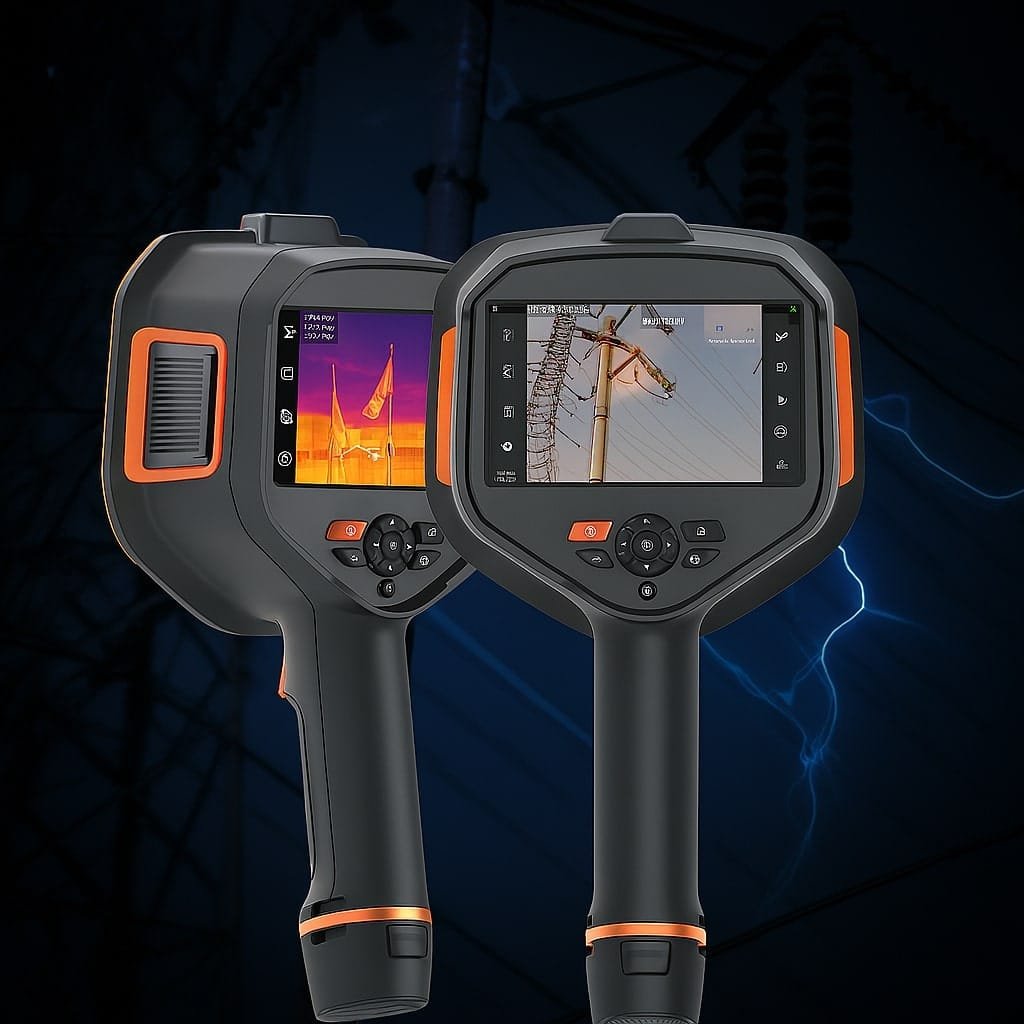

Partial Discharge Detection

Traditional thermal imaging systems identify heat anomalies, but they can overlook early electrical insulation failures. The RA128 adds safety by detecting partial discharges before heat or fire occurs. This allows for proactive High-Low Voltage Electrical Monitoring.

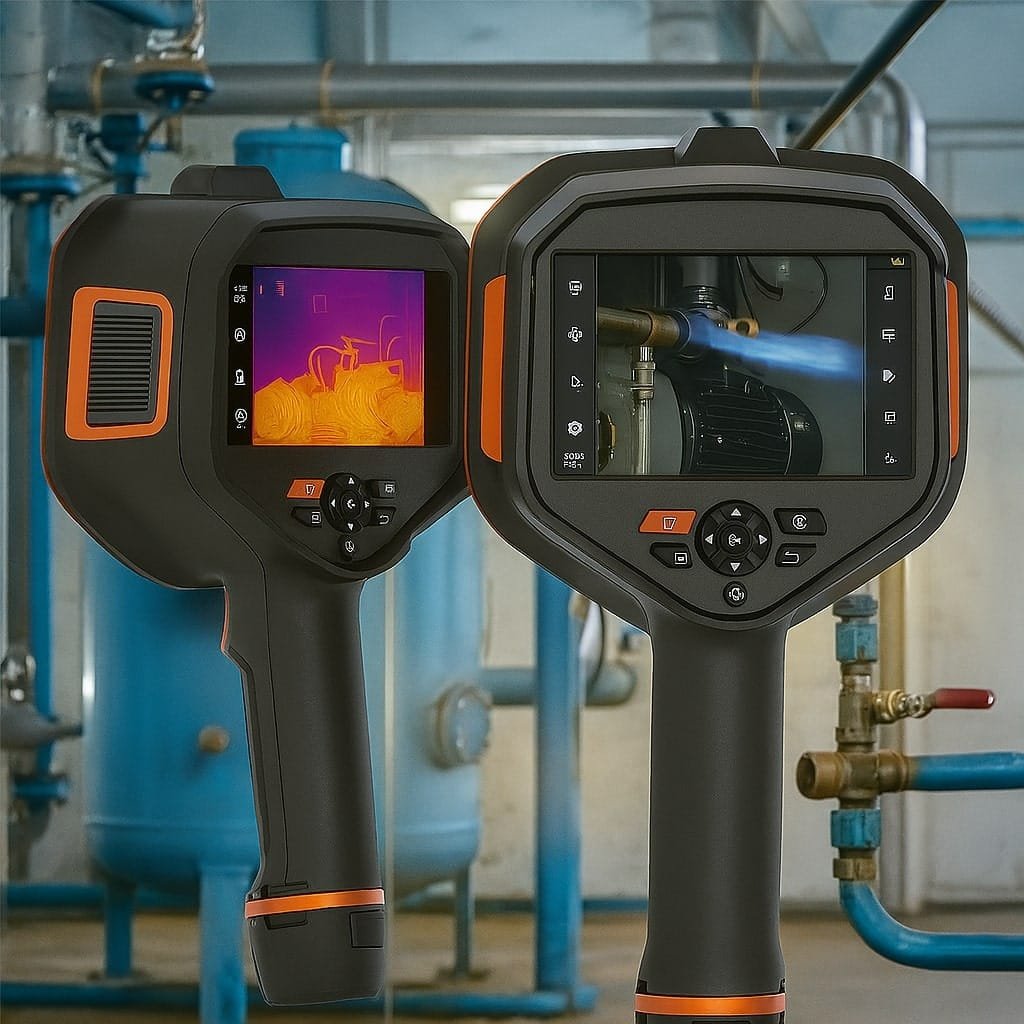

Compressed Air Leak Detection

Compressed air leaks can cost thousands each year. The RA128 offers high sensitivity for quick air leak detection (e.g., nitrogen, hydrogen, or helium gas), helping stop energy waste instantly while allowing production to continue.

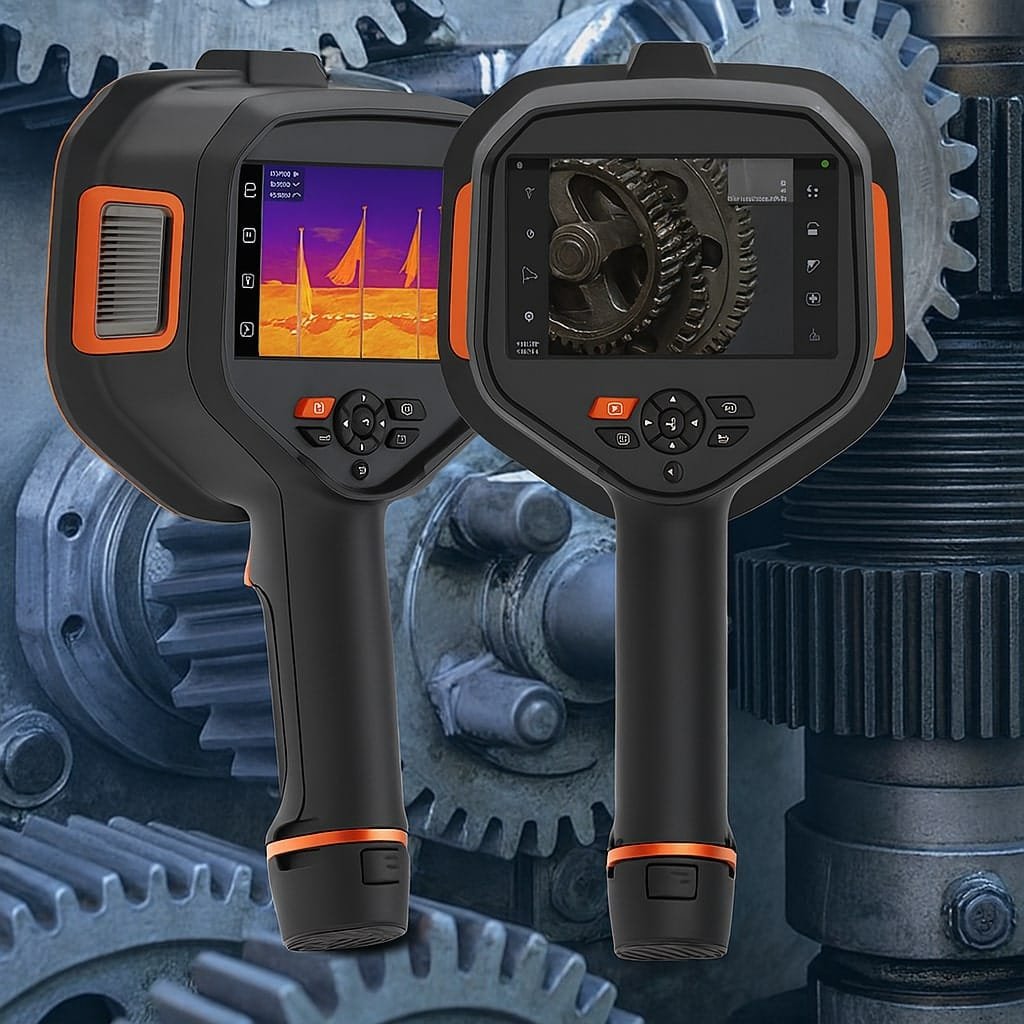

Mechanical Fault Detection

Matching Pantronics India's Thermal Camera Range

At Pantronics India, we focus on complete condition monitoring . That’s why we offer a wide range of infrared solutions, including handheld, motorized focus, high-temperature, compact, and dual-spectrum cameras. For example:

Handheld thermal cameras and infrared thermal imaging cameras for on-the-go inspections
Motorized focusing and high-temperature systems ideal for process control
Compact and online dual-spectrum equipment designed for surveillance and automation

Why Acoustic + Thermal = Better Decisions

Combining RA128 acoustic mapping with thermal imaging fire detection systems provides full insight:

Acoustic vs Thermal Detection Benefits

Risk Area	What Acoustic Sees	What Thermal Sees	Benefit
Electrical Faults	Partial discharge before heat	Overheating insulation	Earliest detection
Air Leaks	Leak noise	Ambient temperature difference	Faster, energy-saving repairs
Mechanical Issues	Ultrasonic faults	Friction heat	Preventive maintenance

Check Out This Integrated Solution Online

Interested in buying thermal cameras online at the best price in India? Pantronics India offers the complete RayThink lineup, including the RA128 Acoustic Imaging Camera and top-quality thermal camera | best infrared thermography camera models. Our team provides expert support, quick demo scheduling, and easy purchasing.

Implementation Outcomes

Substation Safety: RA128 detected PD events before thermal signatures appeared, preventing a potential outage.
Detects gas leaks safely from 5–10 meters away
Reduces maintenance labor by 30–50%
Eliminates costs for access equipment (e.g., platforms, cranes).
Factory Energy Savings: Early detection of a compressed air leak led to a 15% efficiency boost in just days.

Take the Next Step

Are you ready to enhance your condition monitoring strategy with acoustic and thermal insights? Connect with Pantronics India to:

Book a live RA128 demo
Explore our entire Heat Vision Camera collection
Get a custom proposal for your facility

Pantronics India is RayThink authorized distributor for thermal imaging fire detection systems,infrared thermal imaging cameras, and more. Get the clarity you need before problems escalate.

Conclusion

In a world where hidden faults can cause significant disruptions, the RA128 Acoustic Imaging Thermal Camera is a dependable first line of defense. It combines precise acoustic detection with thermal imaging. This technology helps industries spot problems before they worsen, saving time, energy, and money. Whether you oversee substations, factories, or critical infrastructure, Pantronics India provides powerful, industrial-grade diagnostic tools. With expert guidance, demo support, and nationwide availability, you can begin your journey toward safer, more efficient operations. Don’t wait for failure; detect it early. Contact Pantronics India today to secure your facility’s future.

Pantronics India Pvt. Ltd., with a legacy of 50 years, stands as a trusted leader in delivering comprehensive power electronics solutions..

We offer a wide range of power electronics components and systems from top global manufacturers to empower businesses for growth and success. Our products include power semiconductors, resistors, capacitors, fuses, microcontrollers, circuit protection solutions, thermal management systems, testing and measurement solutions, and high voltage and pulse solution

Frequently Asked Questions (FAQs) About RA128 Acoustic Imaging Thermal Camera

1. What is the RA128 Acoustic Imaging Thermal Camera?

The RA128 is a high-precision acoustic imaging and thermal camera designed for real-time monitoring of partial discharges, compressed air leaks, and mechanical faults in industrial environments.

2. What are the main applications of the RA128 camera?

Partial Discharge Detection in high-voltage equipment
Compressed Air and Gas Leak Detection
Mechanical Fault Detection in rotating machinery
Electrical Cabinet Monitoring
Fire Detection & Thermal Monitoring

3. How accurate is the RA128 in detecting partial discharges?

The RA128 features a 128-channel MEMS digital microphone array and can detect discharges as low as 200 pC from a distance of up to 3 meters, ensuring precise localization.

4. Can the RA128 be used in noisy industrial environments?

Yes. The device is built for harsh industrial settings and uses advanced noise filtering to isolate and visualize ultrasound signals even in high-noise zones.

5. Does the RA128 support real-time monitoring and recording?

Yes. The RA128 offers real-time acoustic imaging, thermal imaging, and recording features for detailed post-analysis and reporting.

6. What makes the RA128 different from traditional thermal cameras?

Unlike standard thermal cameras, the RA128 combines acoustic detection with thermal imaging, allowing users to detect both temperature anomalies and ultrasound-based issues like gas leaks or electrical discharges.

7. Is training or technical support available?

Yes, we provide product demonstrations, installation support, and technical training to ensure smooth integration into your maintenance workflow.

8. Can the RA128 help reduce energy losses?

Absolutely. By detecting compressed air and gas leaks early, the RA128 helps industries prevent unnecessary energy loss, reducing both costs and environmental impact.

9. What industries benefit from using the RA128?
