Discover the Power of Rogowski Current Probes from PEM
In high-power and complex electrical environments—like power plants, steel mills, renewable energy installations, and petrochemical facilities—accurately measuring current is a constant challenge. Traditional current transformers often fall short due to limited bandwidth, large form factors, safety risks, or inability to detect high-frequency transients and asymmetric faults.
A Smarter Solution: PEM’s Rogowski Current Sensors for Versatile, Precise Current Measurement
Pantronics India, an authorized distributor of Power Electronic Measurements (PEM), offers a comprehensive line of Rogowski current probes that deliver accurate, non-intrusive, and high-bandwidth current sensing across a wide range of demanding applications. These include models like..

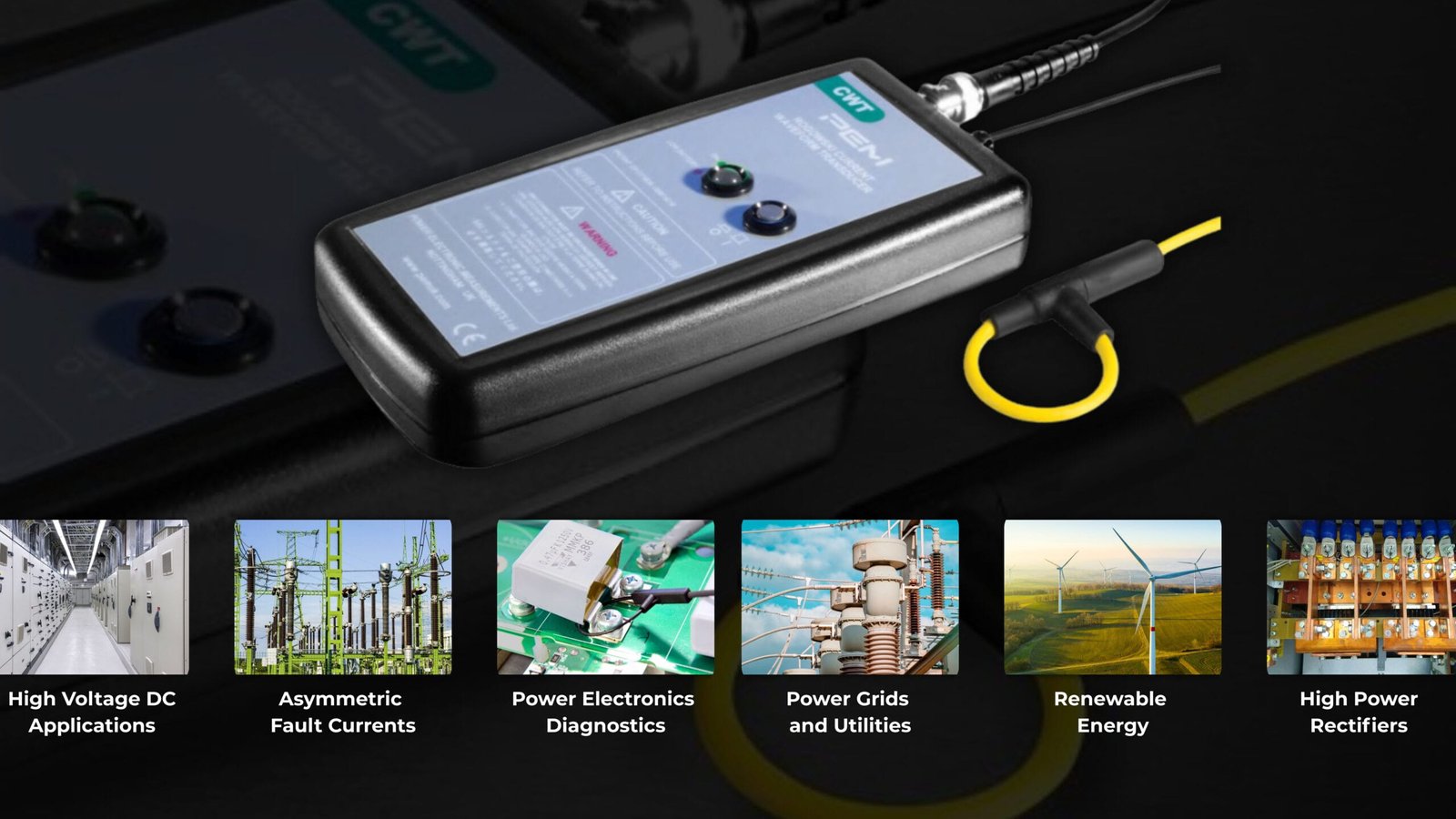

1. CWT Range: Flexible, Clip-Around, Wideband AC Current Probes
The CWT series offers unmatched versatility in current sensing. Built on Rogowski coil technology, these probes support peak current ratings from 30A to 300kA. They come in a variety of coil cross-sections, ranging from just 1.2mm to 8.5mm, and lengths from 55mm for compact installations to over 1000mm for custom needs. Select models like the CWTHF, CWT Mini50HF, and the latest CWTUMHF-F include patented electrostatic shielding for enhanced signal performance.
2. RCT Range: Rogowski Current Sensors for Permanent Monitoring and Control
Designed for permanent installations, PEM’s RCT range offers a lightweight and flexible alternative to conventional current transformers. Featuring an 8.5mm coil cross-section and coil lengths of 300mm, 500mm, 700mm, and 1000mm, these sensors provide wide bandwidth performance ideal for industrial monitoring.
The electronics are available in DIN rail or panel mount versions and support rated currents from 100A to 50kA. Industry-standard output options include 0–5V AC, 0–1A AC, and 4–20mA DC, making them suitable for a wide array of control and monitoring systems.
Applications of Rogowski Current Sensors
| Category | Use-Case | Application Details |
|---|---|---|
| Power Generation & Heavy Industry | Large Turbines & Motors | Measure leakage and bearing currents at 50/60Hz to prevent downtime. |
| Arc Furnaces in Steel Plants | Monitor massive load currents up to 100kA in large conductors. | |
| High Power Rectifiers | Ideal for waveform analysis in 6 or 12-pulse systems. | |
| Electrical Maintenance & Fault Detection | Asymmetric Fault Currents | Detect slow-decaying DC and AC ripple during large system faults. |
| Current Transformer (CT) Replacements | Retrofit easily with Rogowski sensors (e.g., 0-1Aac, 5VA). | |
| Advanced Power Electronics | Double Pulse Testing for SiC Devices | |
| Advanced Power Electronics | EMC Compliance & Diagnostics | Use CWT probes for wide-band EMC measurements on PCBs and circuits. |
| Small AC on Large DC Buses | Detect ripple currents in inverters and power converters. | |
| Energy Monitoring & Smart Factories | Factory & Building Automation | |
| Energy Monitoring & Smart Factories | Process Control & System Monitoring | Monitor systems like pump stations and control cabinets. |
| Renewable Energy & Smart Grids | Wind Turbines & Lightning Monitoring | |
| Renewable Energy & Smart Grids | Power Grids and Utilities | Permanent installations in substations and HVDC with wide-bandwidth support. |
| Specialized Industrial Use-Cases | Pulsed Power Systems | |
| Specialized Industrial Use-Cases | Induction Heating | Accurately monitor high-frequency sinusoidal currents. |
Built for Big Currents, Built for Real Work
From low-frequency leakage to lightning-fast switching, PEM’s Rogowski probes adapt to your needs – with coil diameters from 1.2mm to 8.5mm and insulation levels up to 10kV
Conclusion
Whether you’re troubleshooting leakage currents in a massive turbine, testing SiC semiconductors, or optimizing energy efficiency in a smart factory, PEM’s Rogowski probes—available through Pantronics India—provide a reliable and adaptable solution. These sensors help prevent failures, increase operational safety, and offer unmatched versatility across sectors.
Explore PEM’s full range of Rogowski current measurement solutions with Pantronics India today.
