As more people start using electric vehicles (EVs), the need for quick and reliable charging is growing. DC fast chargers are popular because they can charge EVs much faster than regular Level 2 AC chargers.
But have you ever wondered what goes on inside these technological powerhouses that deliver a crucial energy boost to your EV battery?
So, what’s actually inside these fast chargers? Let’s embark on a journey inside a DC fast charger and explore the key electronic components that make this rapid charging possible.

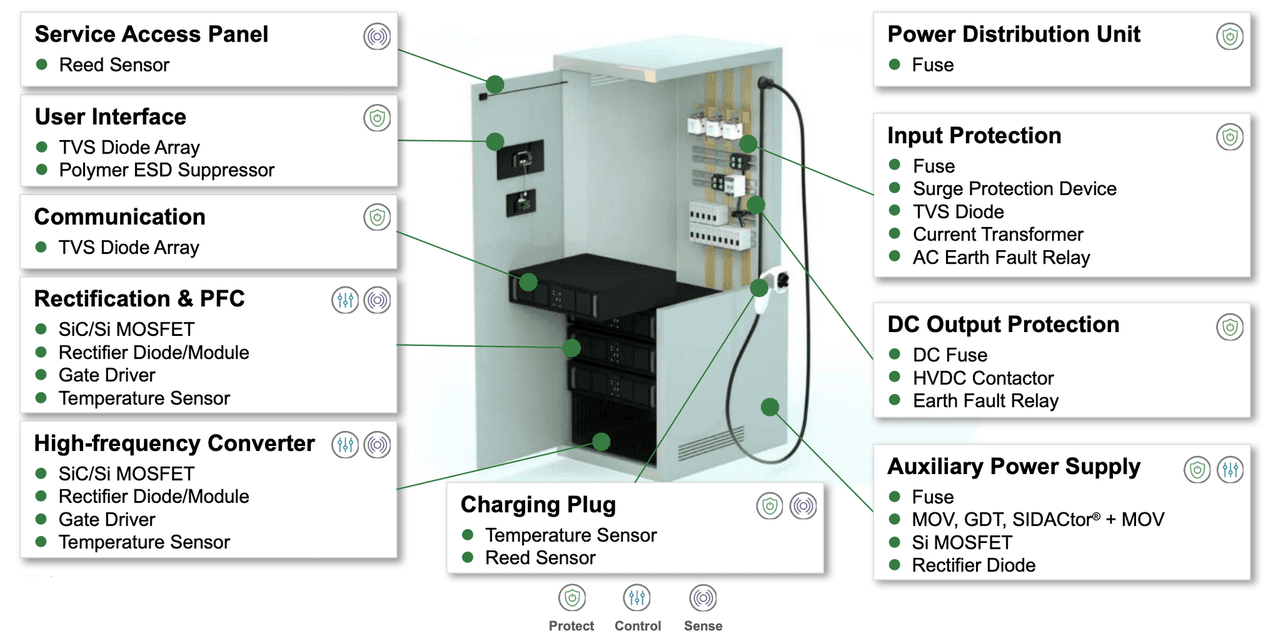

A Look Inside the DC Fast Charger below the image
Input Protection: The charger starts with safety. Fuses, surge protectors, TVS diodes, current sensors, and earth fault relays guard against power surges and faults.
AC to DC Conversion & Power Factor Correction (PFC): This part turns AC into DC and improves efficiency. It uses MOSFETs, rectifier modules, capacitors from Jianghai, gate drivers, and temperature sensors.
High-Frequency Converter: Boosts voltage for fast charging. Uses similar parts as the PFC stage—MOSFETs, rectifiers, Jianghai capacitors, gate drivers, and thermal sensors.
DC Output Protection: Keeps the EV safe with DC fuses, HVDC contactors, and earth fault relays.
Auxiliary Power Supply: Powers control systems using small MOSFETs, diodes, capacitors, fuses, and surge protection parts like MOVs and GDTs.
Communication & Interface: Helps the charger talk to the EV and users. TVS diode arrays protect these circuits.
Charging Plug & Service Panel: Even the plug has sensors to check temperature and give feedback for safe charging.
Thermal Management: Keeps the system cool with Thermal Interface Materials. ShinEtsu, Japan’s No.1 brand, ensures excellent heat dissipation and long-lasting performance.
Pantronics India: Your Authorized Distributor for DC Fast Charging Solutions
Littelfuse: A global leader providing a comprehensive range of circuit protection and power control solutions, including Sensors, Fuses, MOVs, GDTs, Schottky Diodes, TVS Diodes & Arrays, ESD Suppressors, AC Power Relays, Residual Current Monitors, SiC MOSFETs, DC Contactors, Rectifier Diode Modules, Temperature Sensors, Residual Current Monitors, and Cartridge Fuses.
Chauron: Specializing in high-reliability Pyrofuses for critical safety applications.
Tamura: A trusted manufacturer of precision Current Sensors for accurate monitoring.
Glvac: Offers dependable DC Contactors for various power switching needs.
Jianghai: A key supplier of high-quality Capacitors for energy storage and filtering.
ShinEtsu: As Japan’s No.1 brand for Thermal Interface Materials, ShinEtsu ensures excellent heat dissipation and long-lasting performance in electronic devices
Conclusion
DC fast chargers power up EVs quickly! Inside, find vital components like input protection (fuses, surge protectors), AC-DC converters (MOSFETs, capacitors), high-frequency converters, DC output protection, auxiliary power, communication interfaces, charging plugs with sensors, and thermal management (ShinEtsu TIMs).
Pantronics India is a distributor for key parts from Littelfuse, Chauron, Tamura, Glvac, Jianghai, and ShinEtsu, enabling reliable EV charging solutions.
